ELESMART A3

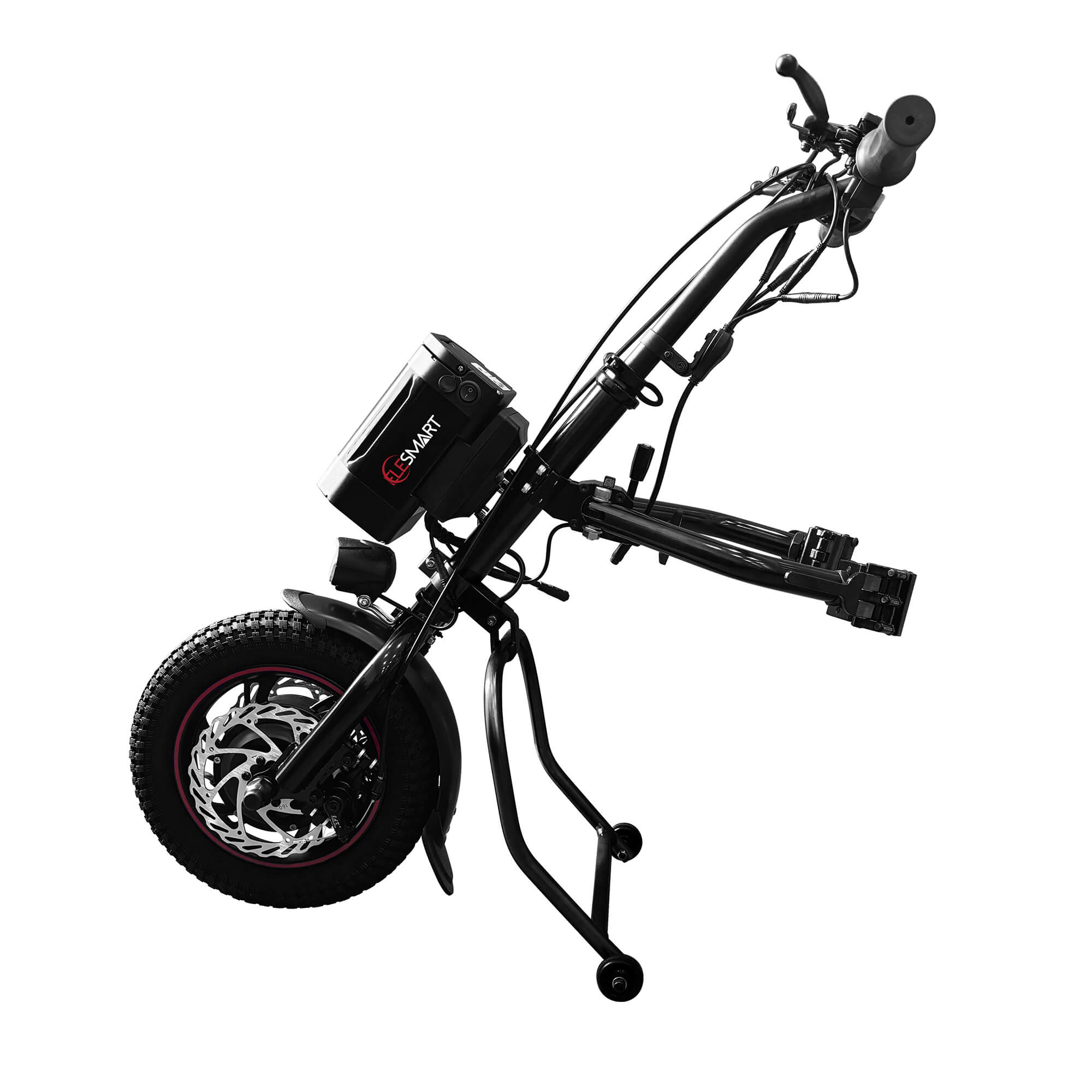

Electric Handcycle Wheelchair Attachment A3

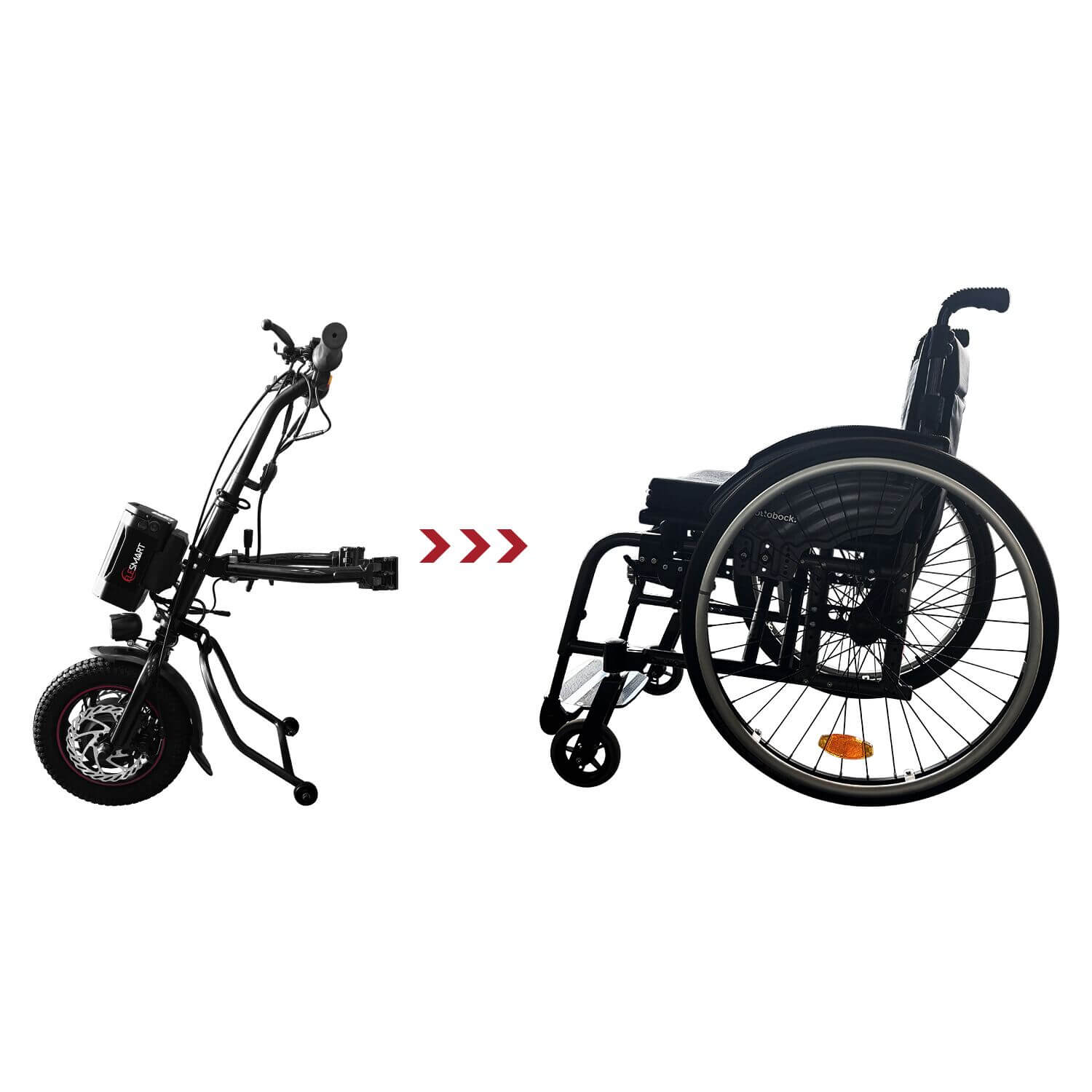

The ELESMART electric wheelchair handcycle attachment is designed to transform your manual wheelchair into a powerful electric-powered wheelchair effortlessly. With a compact and portable design, weighing only 33 lbs, this kit is easy to carry and install. The 12-inch tire diameter, paired with a robust 36V 350W motor, ensures smooth and reliable performance across various terrains, enhancing mobility and freedom.

Request A Quick Quote

7.8 Ah-40 KM

Electric Handcycle Wheelchair Attachment

For Upgrading Manual Wheelchair to Electric Wheelchair

Travel Range

25 Miles
Power

36V/48V 350W
Suitable For

Φ0.87-1.3 inch Tube Diameter
Connect Way

Side Connection
Color

Black

12.8 Ah-60 KM

Electric Wheelchair Handcycle

For Upgrading Manual Wheelchair into an Electric One

Travel Range

37 Miles
Power

36V/48V 350W
Suitable For

Φ 0.87-1.3 inch Tube Diameter
Color

Black

Videos Display

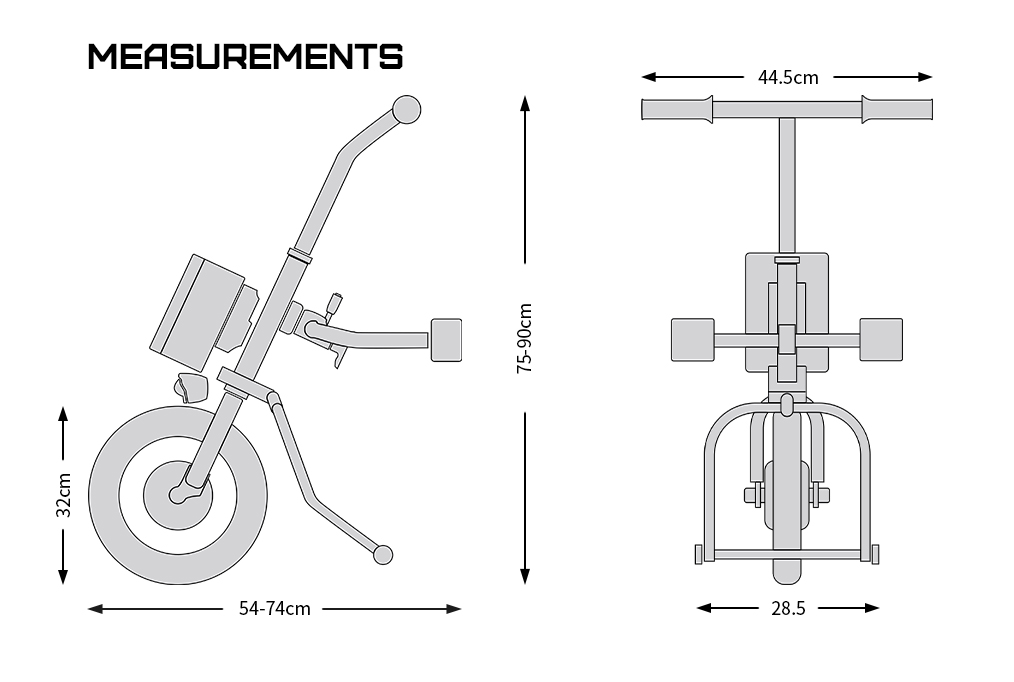

Technical Parameters

Consult Elesmart Expert

Model	A3
Intended Use	Provides power to the wheelchair
Patient Population	The elderly and disabled
Indication	Urban smooth road
Shelf Life	five years (excluding wearing parts)
Wheel Diamter	12"
Motor Power	36V 350W
Speed*	25KM/H
Torque	40Nm
Lithium Battery	7.8/12.8
Range(KM)	40/60
Range(KM)	COLOR TFT+USB
Frame	Standard
Connection Method	Side

Pre-Assembled and Easy to Install

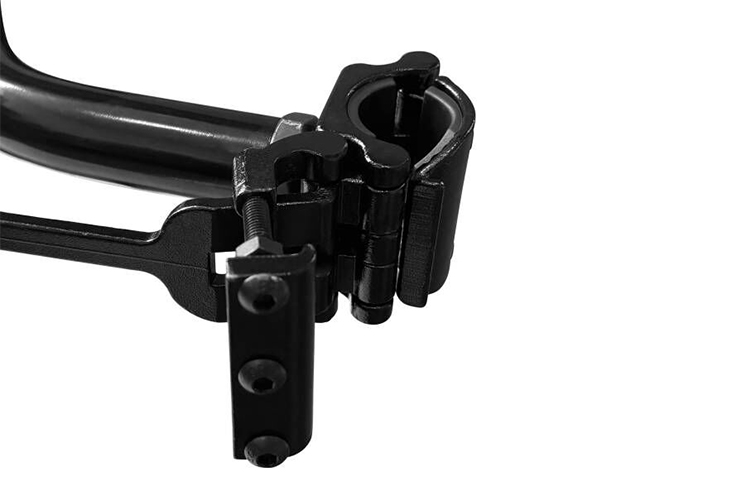

With 99% of components pre-assembled, the wheelchair handcycle attachment is ready to use right out of the box, requiring minimal effort for setup. It’s compatible with wheelchairs with tube diameters ranging from 0.87 to 1.3 inches, suitable for most wheelchairs. The adjustable mounting system allows for a secure fit without compromising leg room. Clear instructions are provided to guide you through the installation process.

High-Performance Motor and Battery

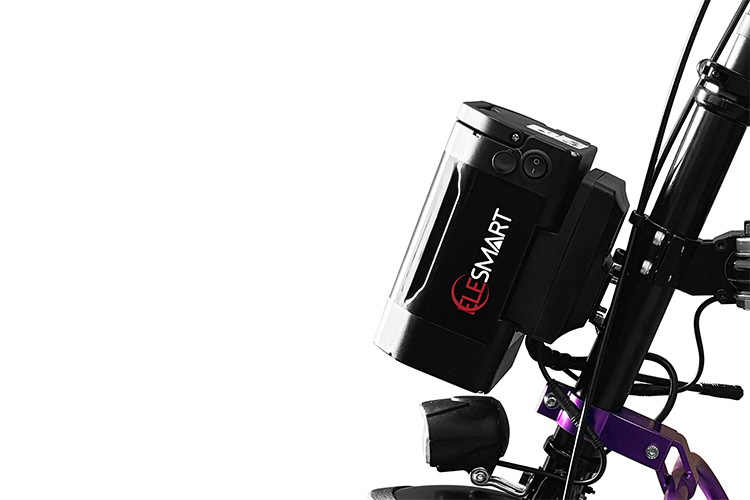

Featuring a highly efficient 7.8/12.8 Ah rechargeable lithium battery, with a maximum range of up to 25/37 Miles. The gear motor is 20% more energy-efficient than gearless motors and excels in climbing, effortlessly tackling slopes of 8-10 degrees. The kit’s maximum speed is 15.5 mph, with a variation of 3 mph depending on the rider’s weight and terrain, ensuring both speed and safety during use.

Advanced Safety and Control Features

Safety is a priority with the wheelchair accessories kit. It includes a reliable disc brake system that ensures precise and secure stopping power. The built-in shock absorption system guarantees a smooth ride, while the reverse speed of 1.9 mph enhances safety during backward maneuvers. Additionally, the kit features a high-intensity LED front light, along with an integrated horn for added convenience and safety during nighttime use.

User-Friendly Design and After-sales Guarantee

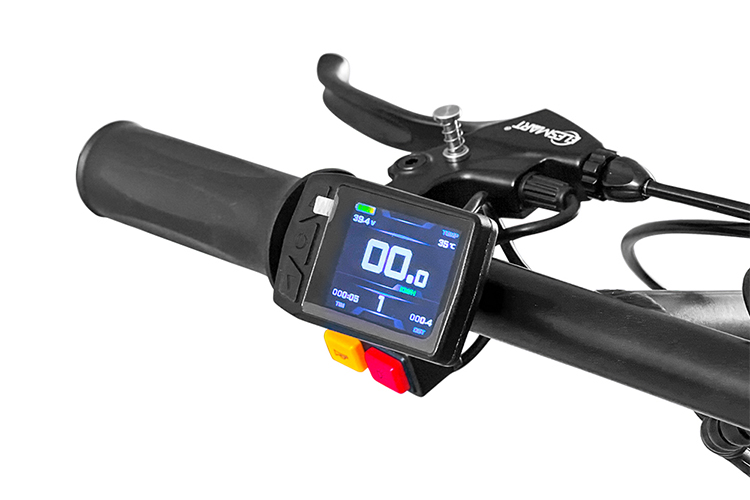

The conversion kit has a color display featuring touch controls, allowing users to monitor and adjust settings easily. The cruise control function enables users to maintain a constant speed with minimal effort, enhancing the overall driving experience. We provide a 2-year warranty, perfect after-sales service, and technical support. You can contact us at any time if you have any questions.

Send Us Your Inquiry Today

Installation

With 99% of components pre-assembled, the wheelchair handcycle attachment is ready to use right out of the box, requiring minimal effort for setup. It’s compatible with wheelchairs with tube diameters ranging from Φ0.87 to 1.3 inches, suitable for most wheelchairs. The adjustable mounting system allows for a secure fit without compromising leg room. Clear instructions are provided to guide you through the installation process.

Performance

Featuring a highly efficient 7.8/12.8 Ah rechargeable lithium battery, with a maximum range of up to 25/37 Miles. The gear motor is 20% more energy-efficient than gearless motors and excels in climbing, effortlessly tackling slopes of 8-10 degrees. The kit’s maximum speed is 15.5 mph, with a variation of 3 mph depending on the rider’s weight and terrain, ensuring both speed and safety during use.

Safety

Safety is a priority with the wheelchair accessories kit. It includes a reliable disc brake system that ensures precise and secure stopping power. The built-in shock absorption system guarantees a smooth ride, while the reverse speed of 1.9 mph enhances safety during backward maneuvers. Additionally, the kit features a high-intensity LED front light, along with an integrated horn for added convenience and safety during nighttime use.

Service

& Support

The conversion kit has a color display featuring touch controls, allowing users to monitor and adjust settings easily. The cruise control function enables users to maintain a constant speed with minimal effort, enhancing the overall driving experience. We provide a 2-year warranty, perfect after-sales service, and technical support. You can contact us at any time if you have any questions!

Electric Handcycle Wheelchair Attachment Documents

Name	Size	Update	Thumbnail	Download
Elesmart A3 User Manual	694KB	2024-12-23		Download

Frequently Asked Questions

Electric Handcycle Wheelchair Attachment FAQ

Q What’s your warranty coverage?

A This product is covered by a 2-year limited warranty from the date of purchase. The warranty applies to defects in materials and workmanship under normal use conditions.
Q What certificate do your company have?

A We are professional electric handcycle manufacturer with ISO9001 & ISO13485 quality management system.
Q Is their licence or document requirement when i use or sell it?

A It is health care product, no special documents needed for you importing and using.
Q How do you ship the products?

A For sample order, we could ship goods for you by express or DDP services.
For bulk order, we could ship goods by sea.
Q How do you make our business long-term and good relationship?

A 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q How does your factory do regarding the quality control?

A Quality is priority. We always attach great importance to quality control from the very beginning of the production. Every product will be tested carefully before packing and shipping.

Elesmart Electric Handcycle Factory FAQ

Q What’s the max loading of this product?

A In general, the products are designed to carry up to 100kg, with heavier weights, the motor power on inclined and start-up will not optimal, and the range will be affected.
Q Can I take it on plane?

A If you plan to fly, it's recommended to choose the 36V 7.8AH version with 280WH lithium battery, as it complies with aviation transportation regulations.
Q Is it suitable for both indoor and outdoor use?

A Yes, the flexible rotation angle and powerful torque can provide you with personalized travel choices, including home, outdoor, shopping mall, and even travel freely
Q Can the product be customized in term of color?

A Yes, we usually keep a certain number stocks of different colors frame for quick delivery. we are also capable of providing customized services to meet user’s specific needs.
Q Are spare parts readily available?

A Yes, spare parts can be supplied together with your order, or whenever you need for repair or replacements.
Q How long does it to charge the battery?

A We send smart AC 100-240v 2A charger, charging time for 16ah battery is about 6-8hours. The battery can be recharged even if they aren’t completely empty, so you can recharge your battery whenever it is convenient for you.
