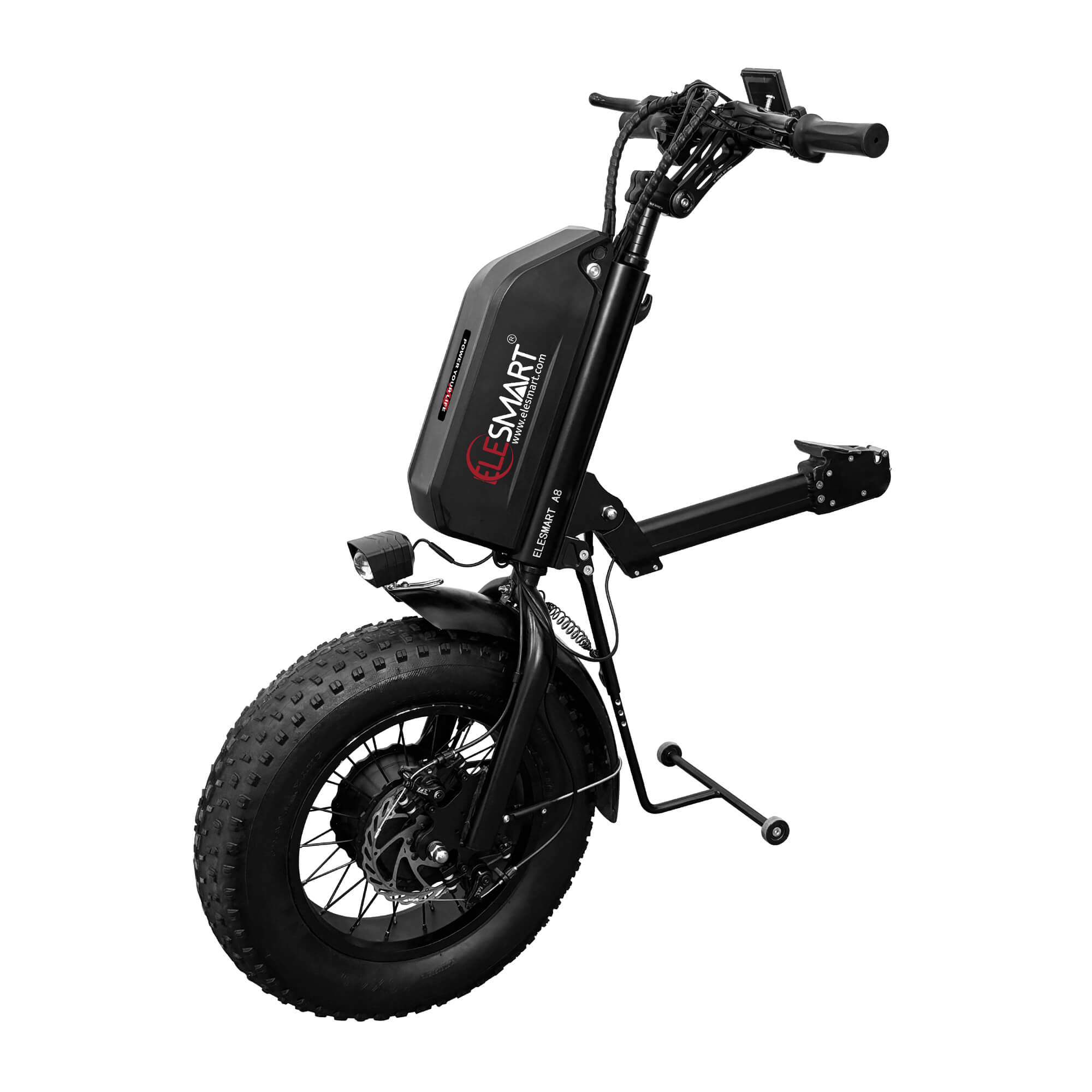

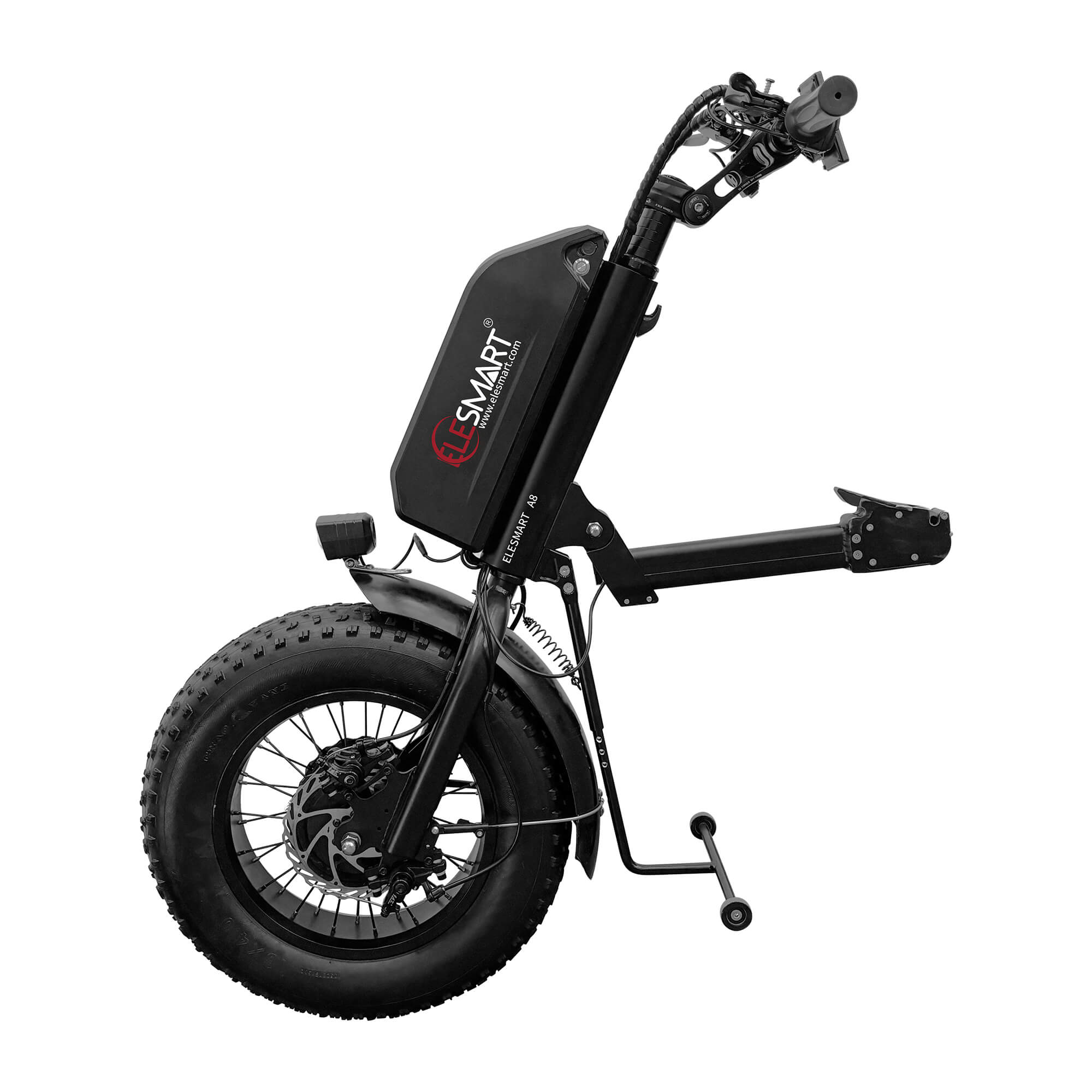

Electric Handcycle Wheelchair Attachment A8

Travel Range

50/62 miles
Power

48v 1000w
Suitable For

Φ1-1.3 inch

Tube Diameter
Connect Way

Center Connection
Color

Red, Black, Blue, Purple

Brief Description

Elesmart electric handcycle is a great alternative to the car and is ideal for longer trips in the city and the countryside for wheelchair users.The 16” fat tire is suitable to more challenging terrain. It has the easy and most universal connecting system and offers many practical features that make it easy and comfortable to use.
Model Specific Features

Lithium Battery: 15 Ah/ 20 Ah
Range: 80 /100 KM
Travel Range: 50/62 miles
Power:48v 1000w
Suitable for Φ1-1.3 inch Tube Diameter
Connect Way:Center Connection
Color: Red, Black, Blue, Purple,Silver

Request A Quick Quote

Videos Display

Technical Parameters

Consult Elesmart Expert

Model	A8
Intended Use	Provides power to the wheelchair
Patient Population	The elderly and disabled
Indication	Urban smooth road
Shelf Life	five years (excluding wearing parts)
Wheel Diamter	16"
Motor Power	48V 1000W
Speed*	40KM/H
Torque	85Nm
Lithium Battery	15/20AH
Range(KM)	80/100
Range(KM)	COLOR TFT
Frame	Integrated
Connection Method	Center

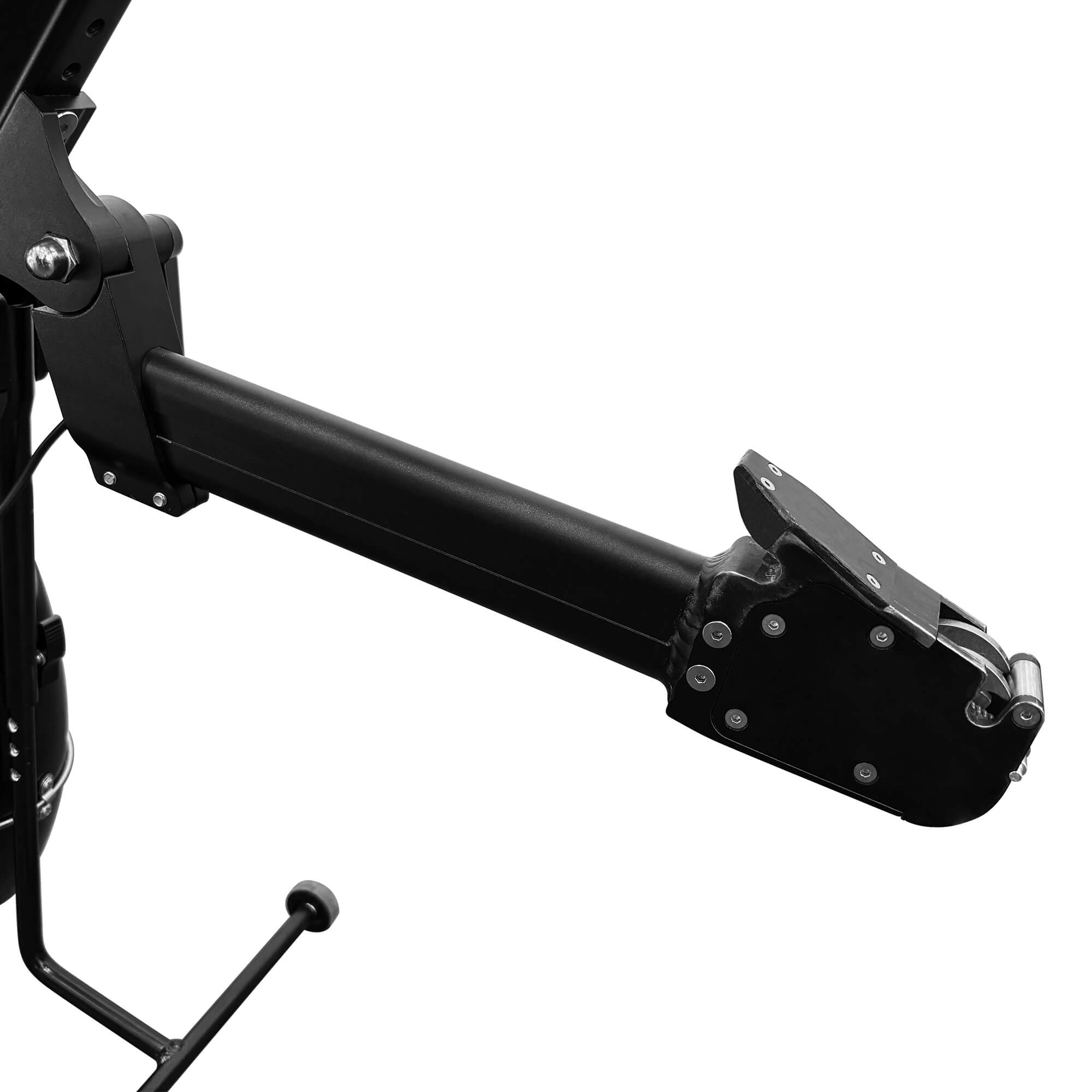

Pre-Assembled and Easy to Install

With 99% of components pre-assembled, the wheelchair handcycle attachment is ready to use right out of the box, requiring minimal effort for setup, and extremely fast mounting and dismounting can be achieved. It fitting most wheelchairs whether they are folding wheelchairs or sports wheelchairs, and ensuring stability during braking. The adjustable mounting system allows for a secure fit without compromising leg room. Clear instructions are provided to guide you through the installation process.

High- Performance Motor and Battery

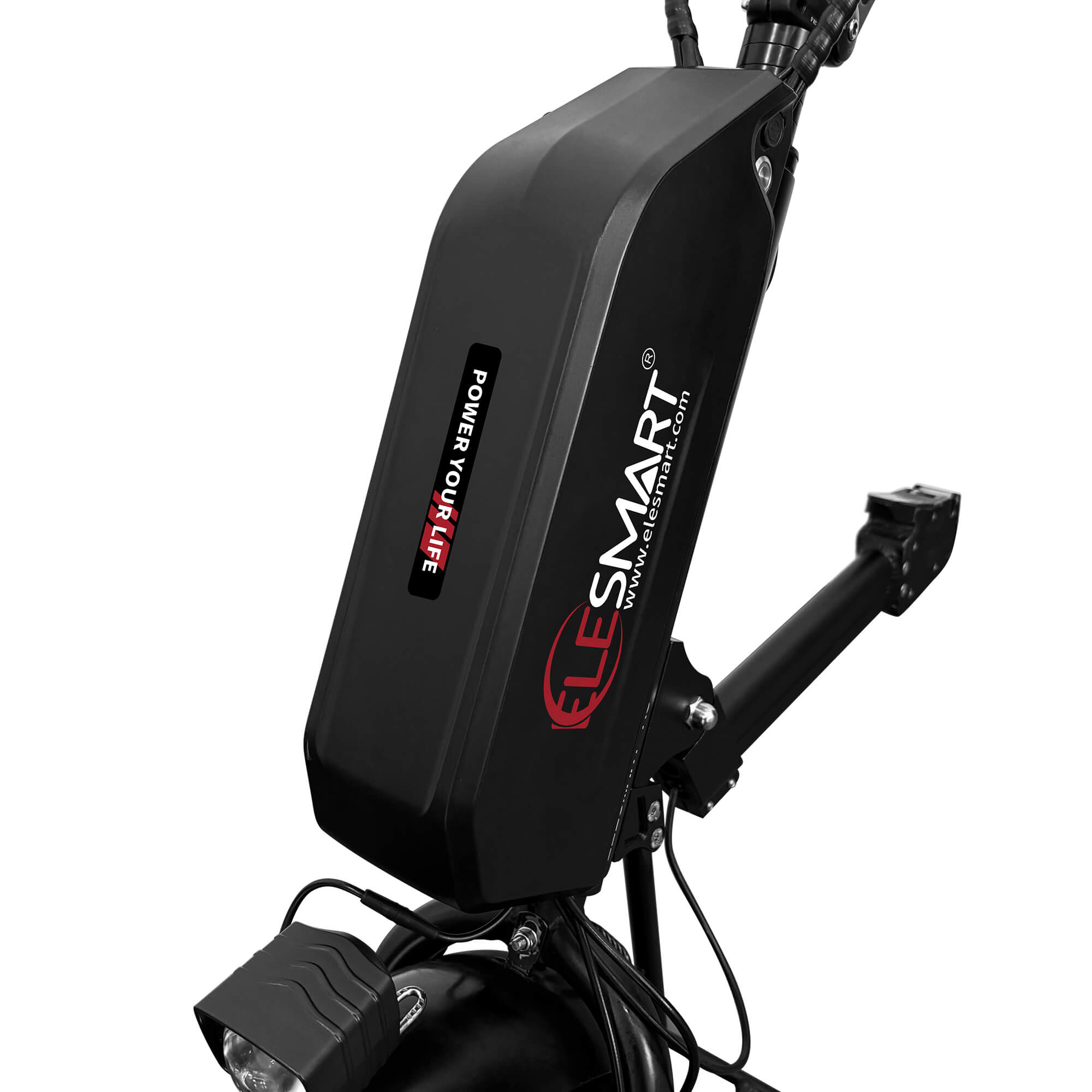

Featuring a highly efficient 15/20 Ah rechargeable lithium battery, with a maximum range of up to 50/62 Miles. The gear motor is 20% more energy-efficient than gearless motors and excels in climbing, effortlessly tackling slopes of 8-10 degrees. The kit’s maximum speed is 40km/h, with 3 forward gears depending on the rider’s weight and terrain, ensuring both speed and safety during use.

Advanced Safety and Control Features

Safety is a priority with the wheelchair accessories kit. It includes 2 reliable disc brake systems that ensure precise and secure stopping power. The built-in shock absorption system guarantees a smooth ride, while the reverse speed of 1.9 mph enhances safety during backward maneuvers. Additionally, the kit features a high-intensity LED front light with a convex lens for extended range and visibility, along with an integrated horn for added convenience and safety during nighttime use.

User-Friendly Design and After-sales Guarantee

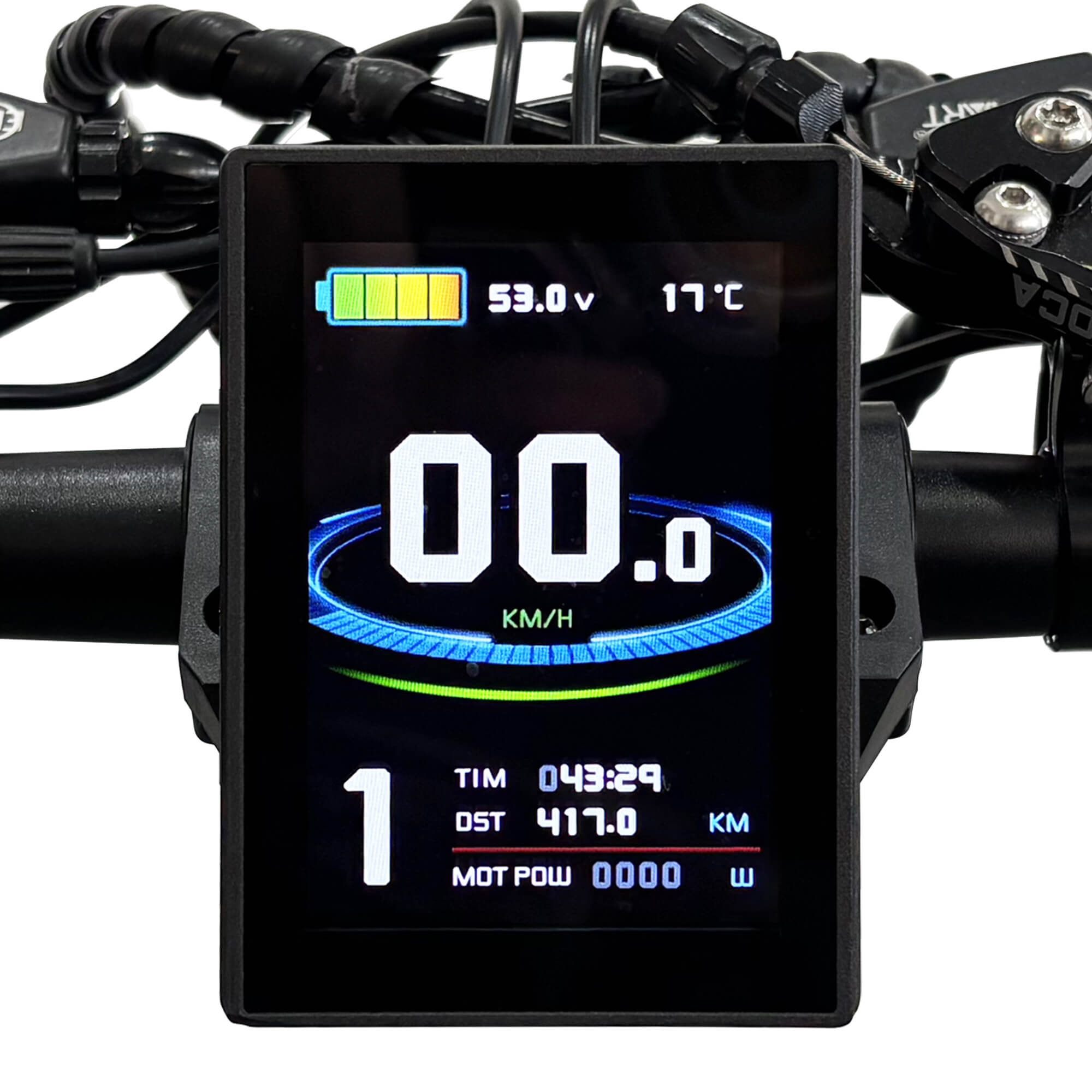

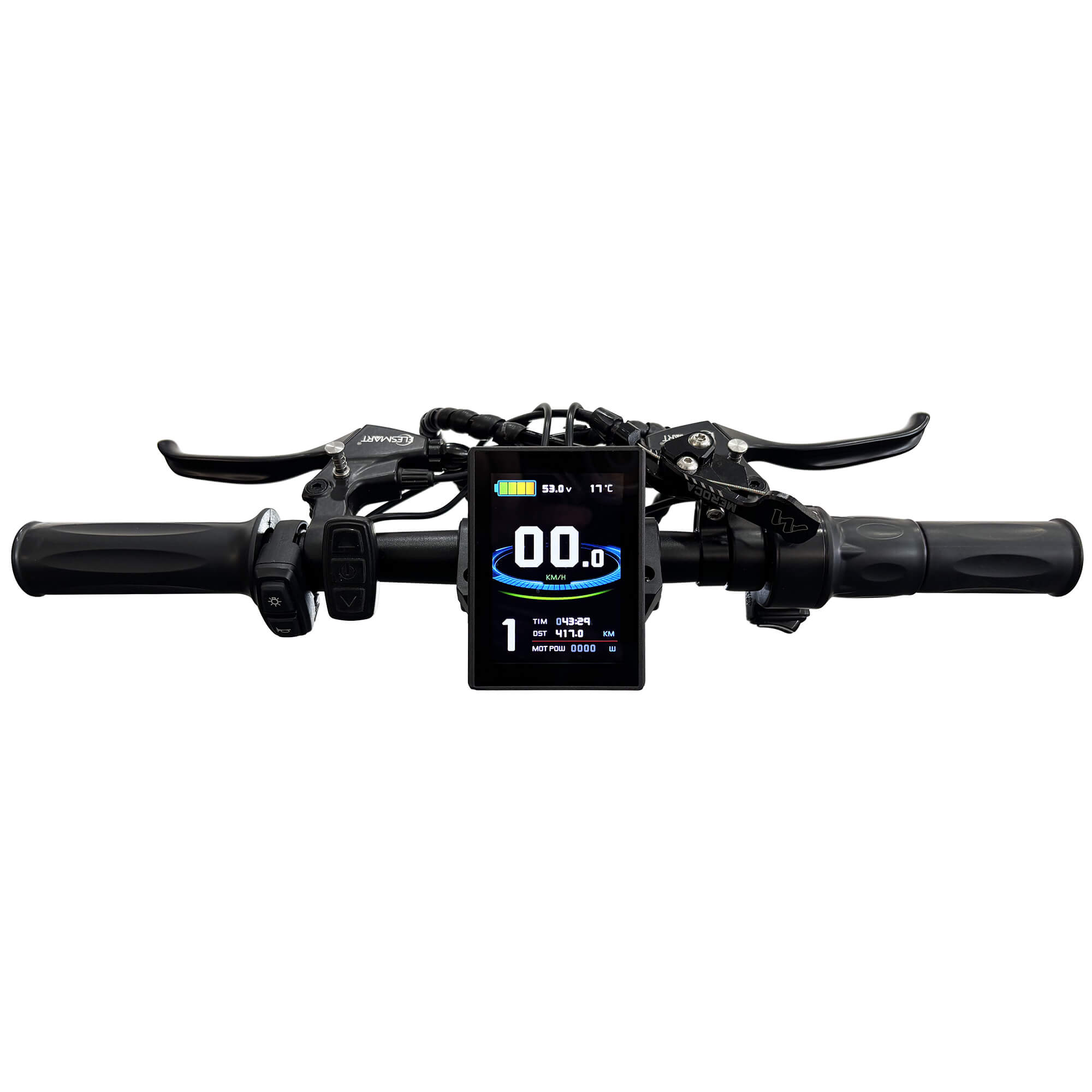

The conversion kit has a widescreen color display featuring individual button box, allowing users to monitor and adjust settings easily. The cruise control function enables users to maintain a constant speed with minimal effort, enhancing the overall driving experience. We provide a 2-year warranty, perfect after-sales service, and technical support. You can contact us at any time if you have any questions!

Send Us Your Inquiry Today

Installation

With 99% of components pre-assembled, the wheelchair handcycle attachment is ready to use right out of the box, requiring minimal effort for setup. It’s compatible with wheelchairs with tube diameters ranging from Φ0.87 to 1.3 inches, suitable for most wheelchairs. The adjustable mounting system allows for a secure fit without compromising leg room. Clear instructions are provided to guide you through the installation process.

Performance

Featuring a highly efficient 7.8/12.8 Ah rechargeable lithium battery, with a maximum range of up to 25/37 Miles. The gear motor is 20% more energy-efficient than gearless motors and excels in climbing, effortlessly tackling slopes of 8-10 degrees. The kit’s maximum speed is 15.5 mph, with a variation of 3 mph depending on the rider’s weight and terrain, ensuring both speed and safety during use.

Safety

Safety is a priority with the wheelchair accessories kit. It includes a reliable disc brake system that ensures precise and secure stopping power. The built-in shock absorption system guarantees a smooth ride, while the reverse speed of 1.9 mph enhances safety during backward maneuvers. Additionally, the kit features a high-intensity LED front light, along with an integrated horn for added convenience and safety during nighttime use.

Service

& Support

The conversion kit has a color display featuring touch controls, allowing users to monitor and adjust settings easily. The cruise control function enables users to maintain a constant speed with minimal effort, enhancing the overall driving experience. We provide a 2-year warranty, perfect after-sales service, and technical support. You can contact us at any time if you have any questions!

How to Use Your Electric Handcycle Wheelchair Attachment

Contact Our Support Team

Electric Handcycle Wheelchair Attachment Documents

Name	Size	Update	Thumbnail	Download
Elesmart A8 User Manual	583KB	2024-12-23		Download

Frequently Asked Questions

Electric Handcycle Wheelchair Attachment FAQ

Q What’s your warranty coverage?

A This product is covered by a 2-year limited warranty from the date of purchase. The warranty applies to defects in materials and workmanship under normal use conditions.
Q What certificate do your company have?

A We are professional electric handcycle manufacturer with ISO9001 & ISO13485 quality management system.
Q Is their licence or document requirement when i use or sell it?

A It is health care product, no special documents needed for you importing and using.
Q How do you ship the products?

A For sample order, we could ship goods for you by express or DDP services.
For bulk order, we could ship goods by sea.
Q How do you make our business long-term and good relationship?

A 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q How does your factory do regarding the quality control?

A Quality is priority. We always attach great importance to quality control from the very beginning of the production. Every product will be tested carefully before packing and shipping.

Elesmart Electric Handcycle Factory FAQ

Q What’s the max loading of this product?

A In general, the products are designed to carry up to 100kg, with heavier weights, the motor power on inclined and start-up will not optimal, and the range will be affected.
Q Can I take it on plane?

A If you plan to fly, it's recommended to choose the 36V 7.8AH version with 280WH lithium battery, as it complies with aviation transportation regulations.
Q Is it suitable for both indoor and outdoor use?

A Yes, the flexible rotation angle and powerful torque can provide you with personalized travel choices, including home, outdoor, shopping mall, and even travel freely
Q Can the product be customized in term of color?

A Yes, we usually keep a certain number stocks of different colors frame for quick delivery. we are also capable of providing customized services to meet user’s specific needs.
Q Are spare parts readily available?

A Yes, spare parts can be supplied together with your order, or whenever you need for repair or replacements.
Q How long does it to charge the battery?

A We send smart AC 100-240v 2A charger, charging time for 16ah battery is about 6-8hours. The battery can be recharged even if they aren’t completely empty, so you can recharge your battery whenever it is convenient for you.
