ELESMART A5

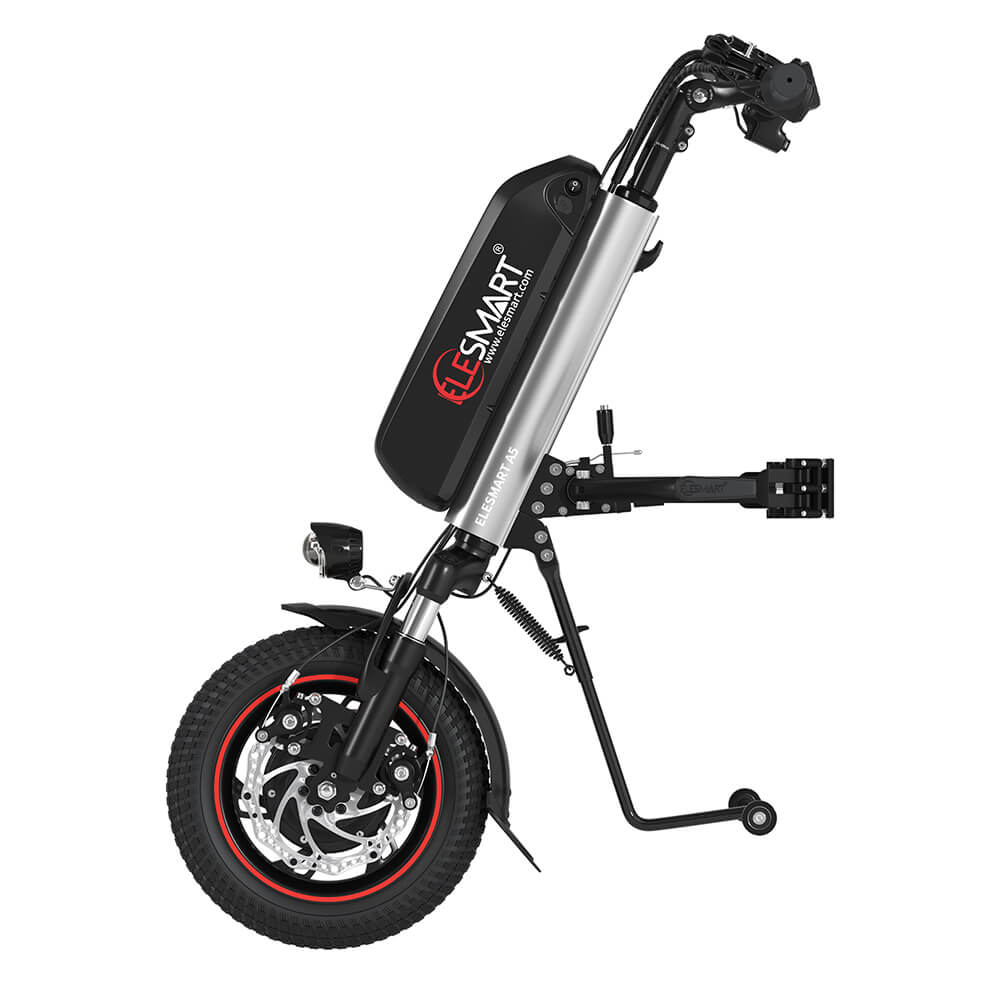

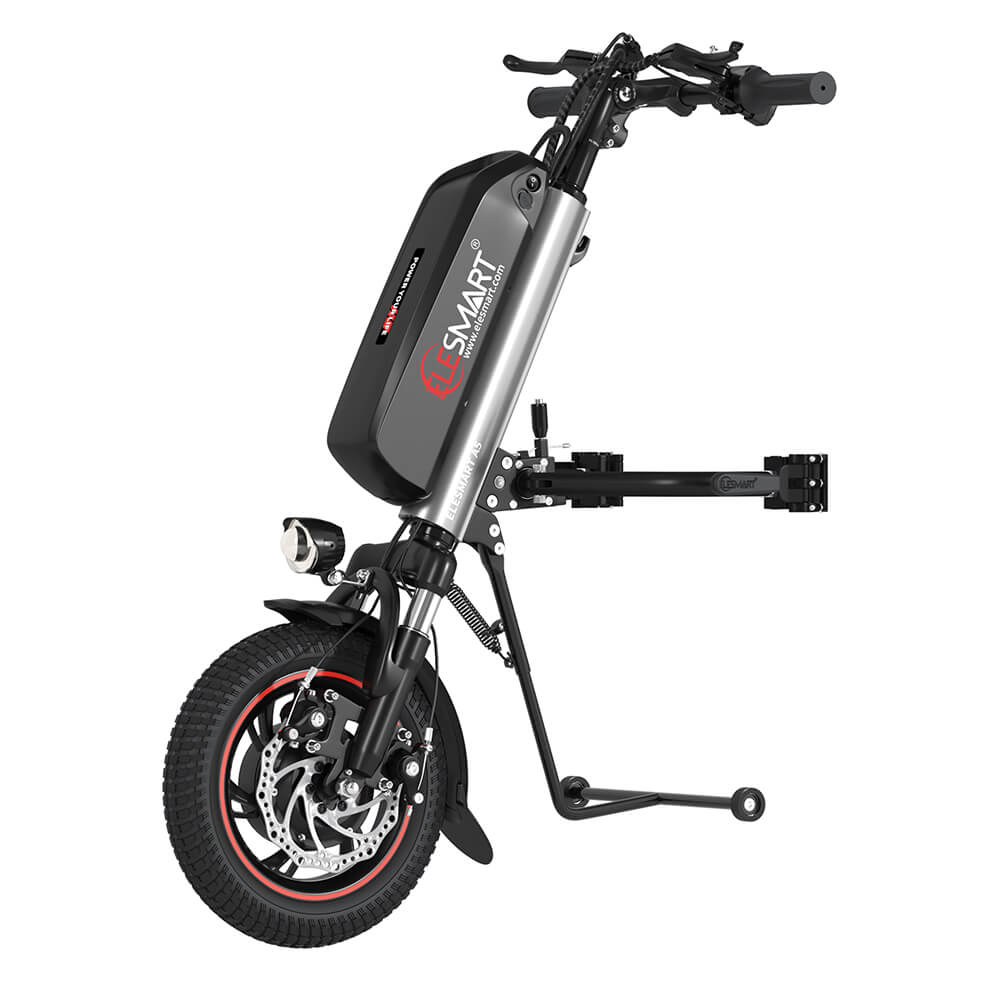

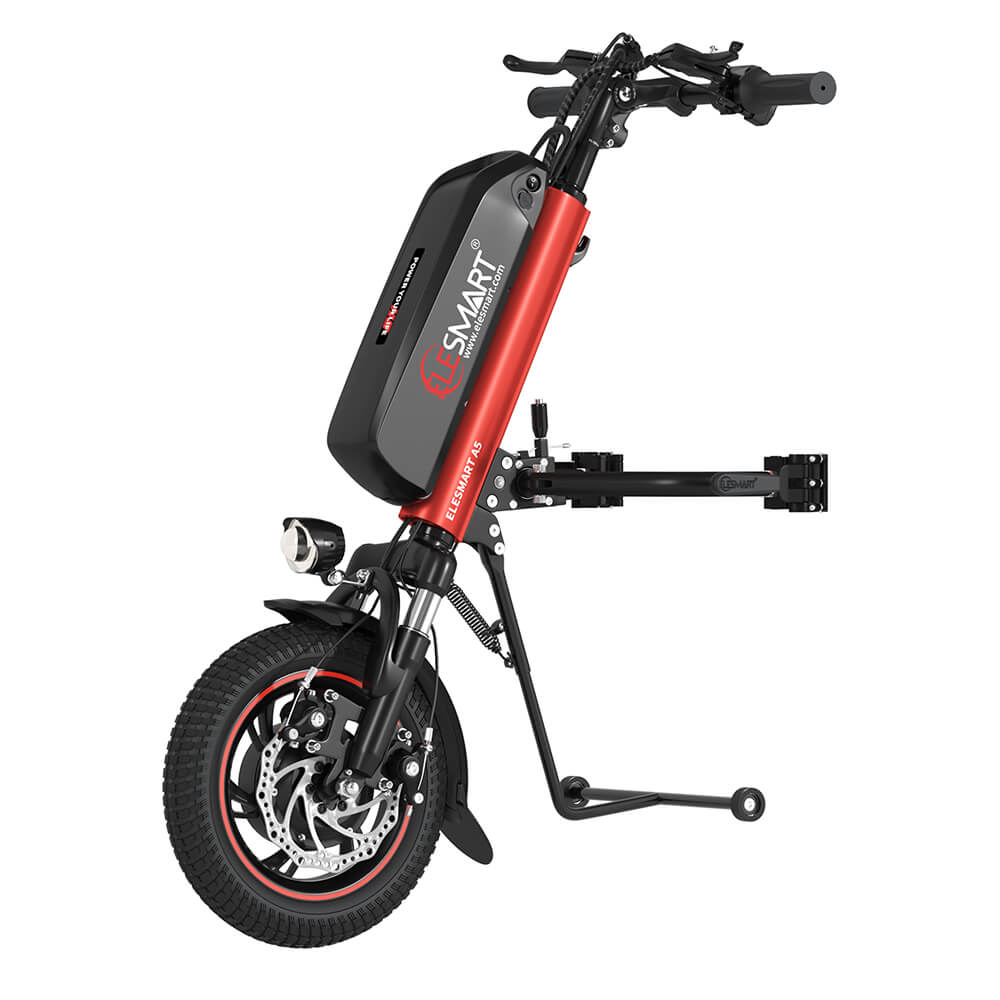

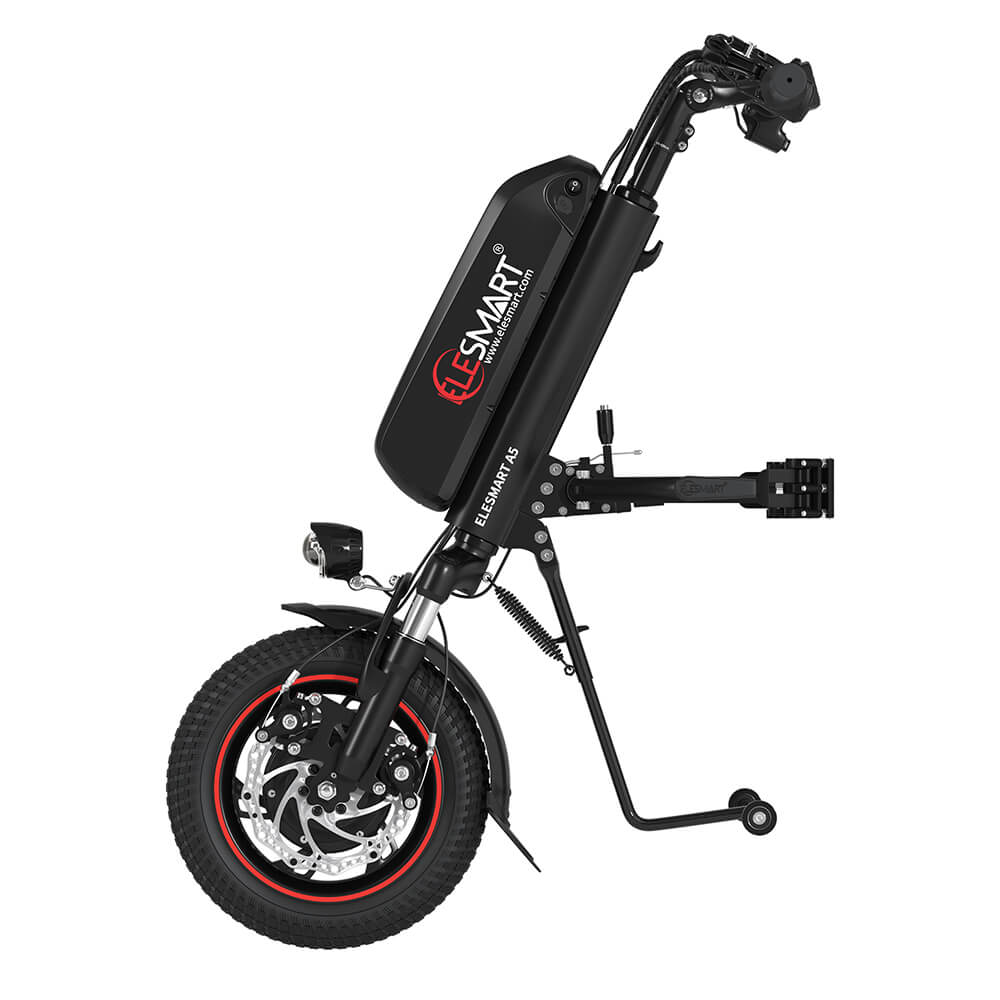

Electric Handcycle Wheelchair Attachment A5

Travel Range

31/37 Miles
Power

36V/48V 500W
Suitable For

Φ0.87-1.3 inch

Tube Diameter
Connect Way

Side Connection

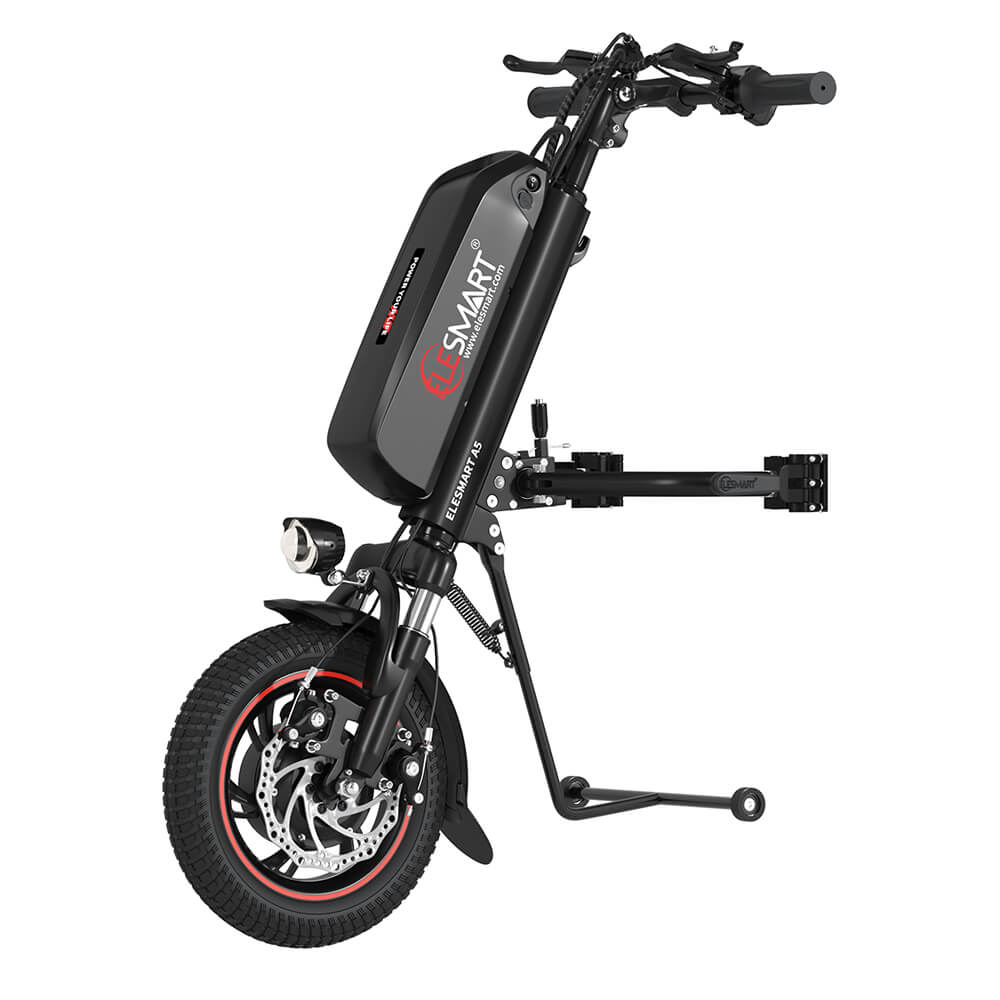

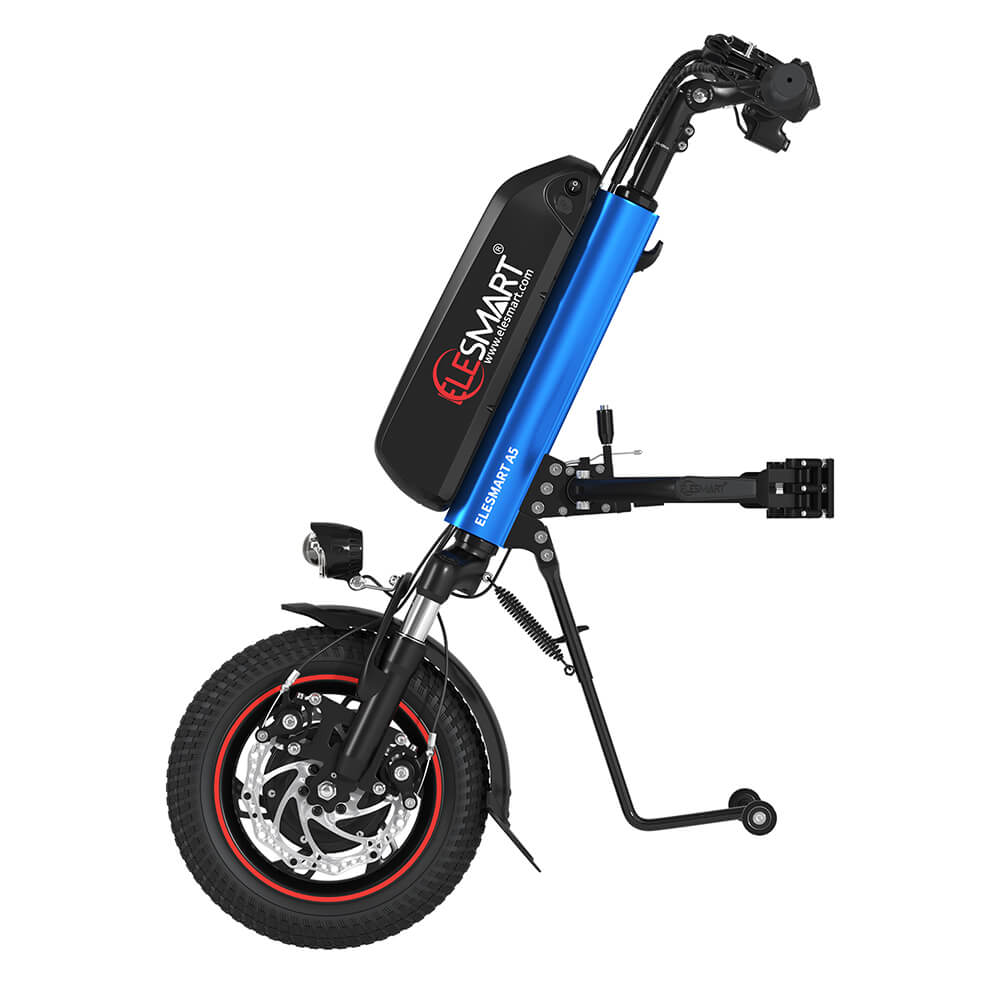

Color

Red, Black, Blue, Purple

Brief Description

The ELESMART electric wheelchair handcycle attachment is designed to transform your manual wheelchair into a powerful electric-powered wheelchair effortlessly.
Model Specific Features

Lithium Battery: 10.4 Ah/ 12.8 Ah / 16 Ah
Range: 50/ 60 / 70 KM
Travel Range: 31/37 Miles
Power:36V/48V 500W
Suitable for Φ0.87-1.3 inch Tube Diameter
Connect Way:Side Connection
Color: Red, Black, Blue, Purple

Request A Quick Quote

With a compact and portable design, weighing only 33 lbs, this kit is easy to carry and install. The 12-inch tire diameter, paired with a robust 36V 500W motor, ensures smooth and reliable performance across various terrains, enhancing mobility and freedom.

Electric Handcycle Wheelchair Attachment Videos

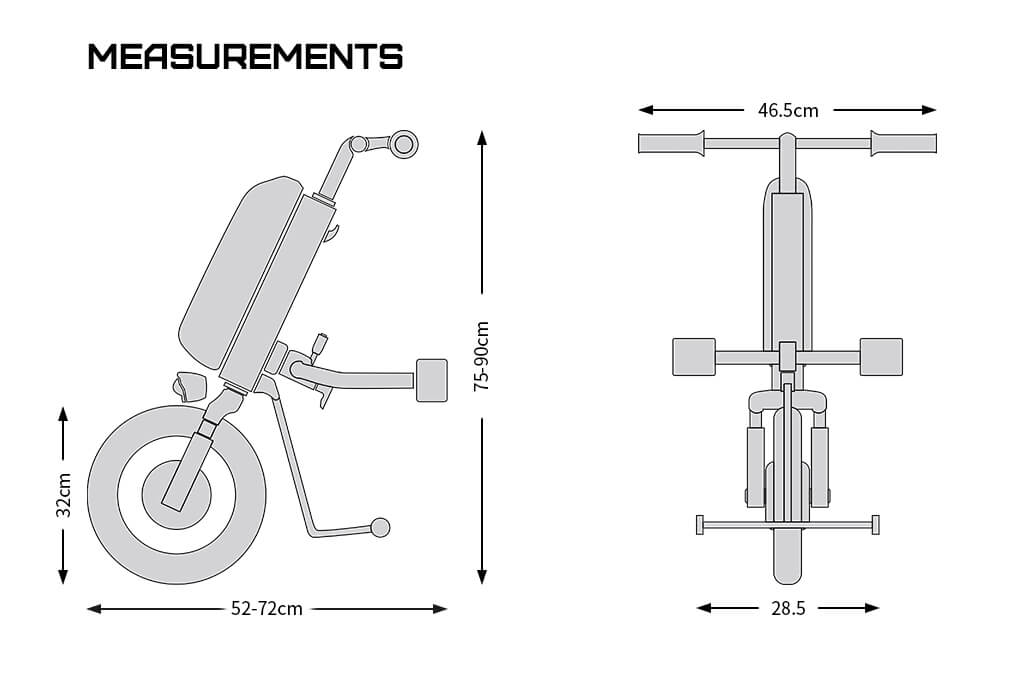

Electric Handcycle Wheelchair Attachment Technical Parameters

Model	A5
Intended Use	Provides power to the wheelchair
Patient Population	The elderly and disabled
Indication	Urban smooth road
Shelf Life	five years (excluding wearing parts)
Wheel Diamter	12"
Motor Power	36V/48V 500W
Speed*	25KM/H
Torque	45Nm
Lithium Battery	10.4/12.8/16
Range(KM)	50/60/70
Range(KM)	COLOR TFT+USB
Frame	Suspension
Connection Method	Side

1. Gear and Speed Parameters: 3 forward gears, maximum speed of 25KM/H, 1 reverse gear, right-hand control for forward motion.
2.Cruise Control Function: Enabled by default, can be turned off.
3.Maximum Speed: Affected by actual user conditions, load, road conditions,etc., with a variation of ±5KM.
4. Range: Measured with a weight of 50kg work on 1 level on a flat road. Range depends on userweight, road conditions, wheelchair tire condition, battery condition, speed, and driving habits.

5. Charger: Complies with EU regulations, EMC tested, 36V dimensions is 104.3*53*26mm, 300g, Easy to take !

Pre-Assembled And Easy To Install

With 99% of components pre-assembled, the wheelchair handcycle attachment is ready to use right out of the box, requiring minimal effort for setup. It’s compatible with wheelchairs with tube diameters ranging from 0.87 to 1.3 inches, suitable for most wheelchairs. The adjustable mounting system allows for a secure fit without compromising leg room. Clear instructions are provided to guide you through the installation process.

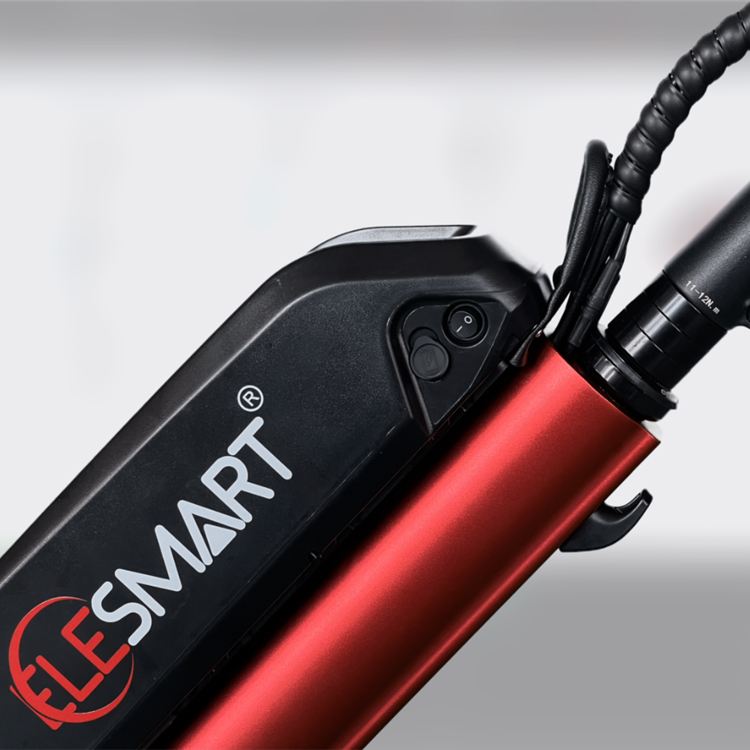

High-Performance Motor and Battery

Featuring a highly efficient 10.4/12.8 Ah rechargeable lithium battery, with a maximum range of up to 31/37 Miles. The gear motor is 20% more energy-efficient than gearless motors and excels in climbing, effortlessly tackling slopes of 8-10 degrees. The kit’s maximum speed is 15.5 mph, with a variation of 3 mph depending on the rider’s weight and terrain, ensuring both speed and safety during use.

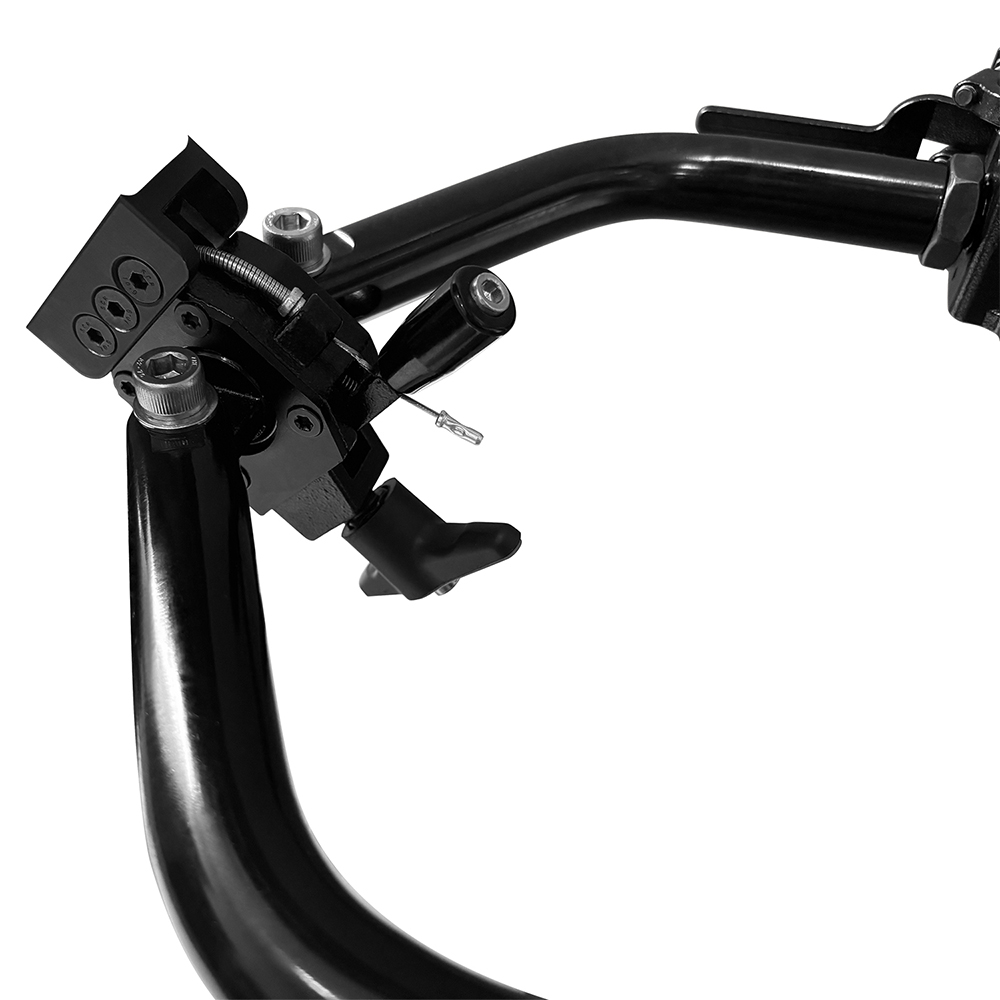

Advanced Safety and Control Features

Safety is a priority with the wheelchair accessories kit. It includes a reliable disc brake system that ensures precise and secure stopping power. The built-in shock absorption system guarantees a smooth ride, while the reverse speed of 1.9 mph enhances safety during backward maneuvers. Additionally, the kit features a high-intensity LED front light for extended range and visibility, along with an integrated horn for added convenience and safety during nighttime use.

User-Friendly Design and After-sales Guarantee

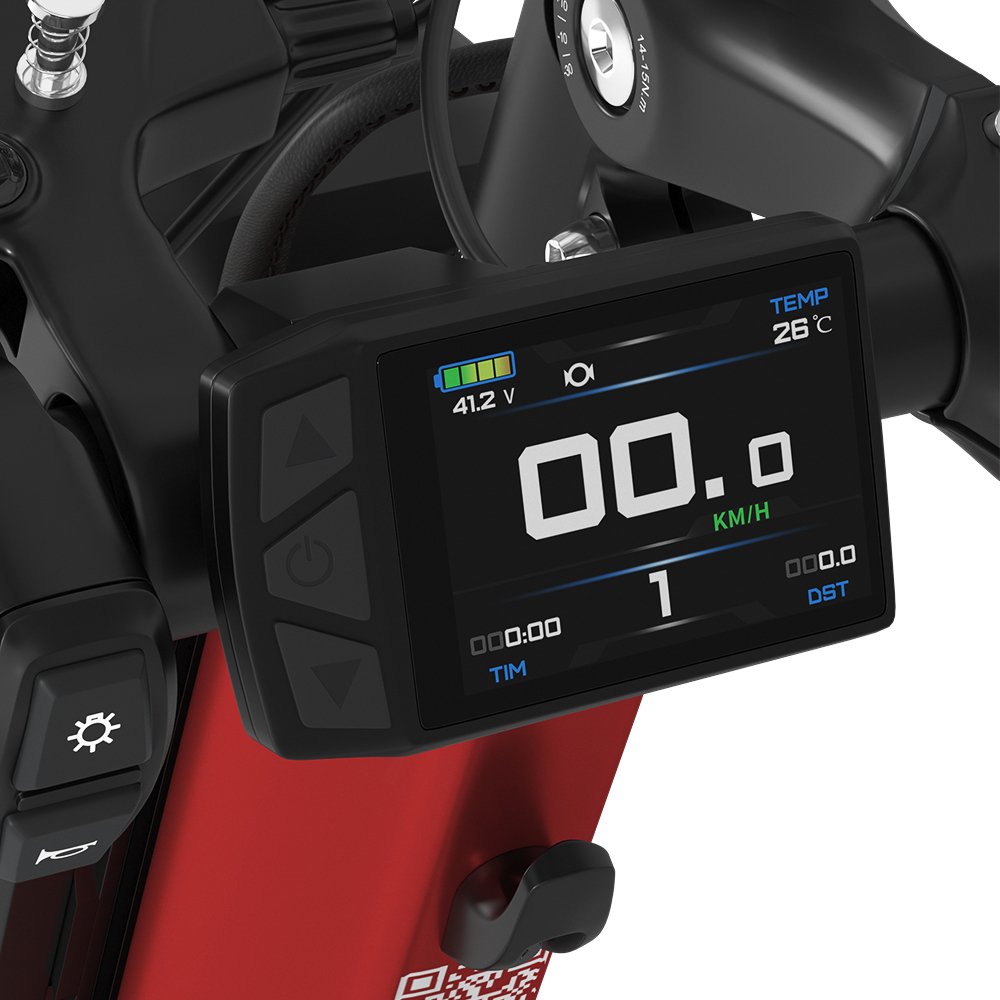

The conversion kit has a color display featuring touch controls, allowing users to monitor and adjust settings easily. The cruise control function enables users to maintain a constant speed with minimal effort, enhancing the overall driving experience. We provide a 2-year warranty, perfect after-sales service, and technical support. You can contact us at any time if you have any questions.

Send Us Your Inquiry Today

Installation

With 99% of components pre-assembled, the wheelchair handcycle attachment is ready to use right out of the box, requiring minimal effort for setup. It’s compatible with wheelchairs with tube diameters ranging from 0.87 to 1.3 inches, suitable for most wheelchairs. The adjustable mounting system allows for a secure fit without compromising legroom. Clear instructions are provided to guide you through the installation process.

Performance

Featuring a highly efficient 10.4/12.8 Ah rechargeable lithium battery, with a maximum range of up to 31/37 Miles. The gear motor is 20% more energy-efficient than gearless motors and excels in climbing, effortlessly tackling slopes of 8-10 degrees. The kit’s maximum speed is 15.5 mph, with a variation of 3 mph depending on the rider’s weight and terrain, ensuring both speed and safety during use.

Safety

Safety is a priority with the wheelchair accessories kit. It includes a reliable disc brake system that ensures precise and secure stopping power. The built-in shock absorption system guarantees a smooth ride, while the reverse speed of 1.9 mph enhances safety during backward maneuvers. Additionally, the kit features a high-intensity LED front light with a convex lens for extended range and visibility, along with an integrated horn for added convenience and safety during nighttime use.

Service

The conversion kit has a color display featuring touch controls, allowing users to monitor and adjust settings easily. The cruise control function enables users to maintain a constant speed with minimal effort, enhancing the overall driving experience. We provide a 2-year warranty, perfect after-sales service, and technical support. You can contact us at any time if you have any questions!

How to Install Your Electric Handcycle Wheelchair Attachment

Contact Our Support Team

Electric Handcycle Wheelchair Attachment Documents

Name	Size	Update	Thumbnail	Download
Elesmart A5 User Manual	697KB	2024-12-23		Download

Frequently Asked Questions

Electric Handcycle Wheelchair Attachment FAQ

Q What’s your warranty coverage?

A This product is covered by a 2-year limited warranty from the date of purchase. The warranty applies to defects in materials and workmanship under normal use conditions.
Q What certificate do your company have?

A We are professional electric handcycle manufacturer with ISO9001 & ISO13485 quality management system.
Q Is their licence or document requirement when i use or sell it?

A It is health care product, no special documents needed for you importing and using.
Q How do you ship the products?

A For sample order, we could ship goods for you by express or DDP services.
For bulk order, we could ship goods by sea.
Q How do you make our business long-term and good relationship?

A 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q How does your factory do regarding the quality control?

A Quality is priority. We always attach great importance to quality control from the very beginning of the production. Every product will be tested carefully before packing and shipping.

Elesmart Electric Handcycle Factory FAQ

Q What’s the max loading of this product?

A In general, the products are designed to carry up to 100kg, with heavier weights, the motor power on inclined and start-up will not optimal, and the range will be affected.
Q Can I take it on plane?

A If you plan to fly, it's recommended to choose the 36V 7.8AH version with 280WH lithium battery, as it complies with aviation transportation regulations.
Q Is it suitable for both indoor and outdoor use?

A Yes, the flexible rotation angle and powerful torque can provide you with personalized travel choices, including home, outdoor, shopping mall, and even travel freely
Q Can the product be customized in term of color?

A Yes, we usually keep a certain number stocks of different colors frame for quick delivery. we are also capable of providing customized services to meet user’s specific needs.
Q Are spare parts readily available?

A Yes, spare parts can be supplied together with your order, or whenever you need for repair or replacements.
Q How long does it to charge the battery?

A We send smart AC 100-240v 2A charger, charging time for 16ah battery is about 6-8hours. The battery can be recharged even if they aren’t completely empty, so you can recharge your battery whenever it is convenient for you.
