Wheelchair handcycle is usually used to improve the convenience and mobility of manual wheelchairs.
It helps users reduce the need for thrust through an additional electric traction system, especially on uneven ground, ramps or long-term use. Specific uses include:
Increase driving distance: The wheelchair handcycle can effectively extend the use range of the wheelchair, which can reach tens of kilometers on a single charge, especially suitable for long-term outings or daily commuting needs.
Improve climbing ability: On ramps or uneven roads, the wheelchair handcycle can provide additional power to help users easily overcome steep slopes or complex terrain.
Reduce physical burden: For users with limb disabilities or weak physical strength, the wheelchair handcycle can reduce the physical burden when pushing the wheelchair, especially when the wheelchair needs to be pushed across a long distance.
Improve independence: Wheelchairs handcycle allow users to go out more independently and no longer rely entirely on others to push them.
Adapt to different ground conditions: The wheelchair handcycle can provide additional power according to different ground conditions (such as grass, beach or snow), allowing the wheelchair to move smoothly in a wider range of environments.
In general, the main purpose of a wheelchair handcycle is to enhance the functionality and applicability of a manual wheelchair, making it easier and more efficient for users to move around, especially outdoors or in special environments.
The working principle of the wheelchair handcycle is that the electric motor drives the traction wheel to provide forward or backward power through the battery power supply. The user can adjust the driving speed and direction through the controller. At the same time, the electric traction device can automatically adapt to different ground conditions, provide continuous power support, reduce the user's physical exertion, and improve their independence.
The speed at which a handcycle can travel varies entirely from person to person.

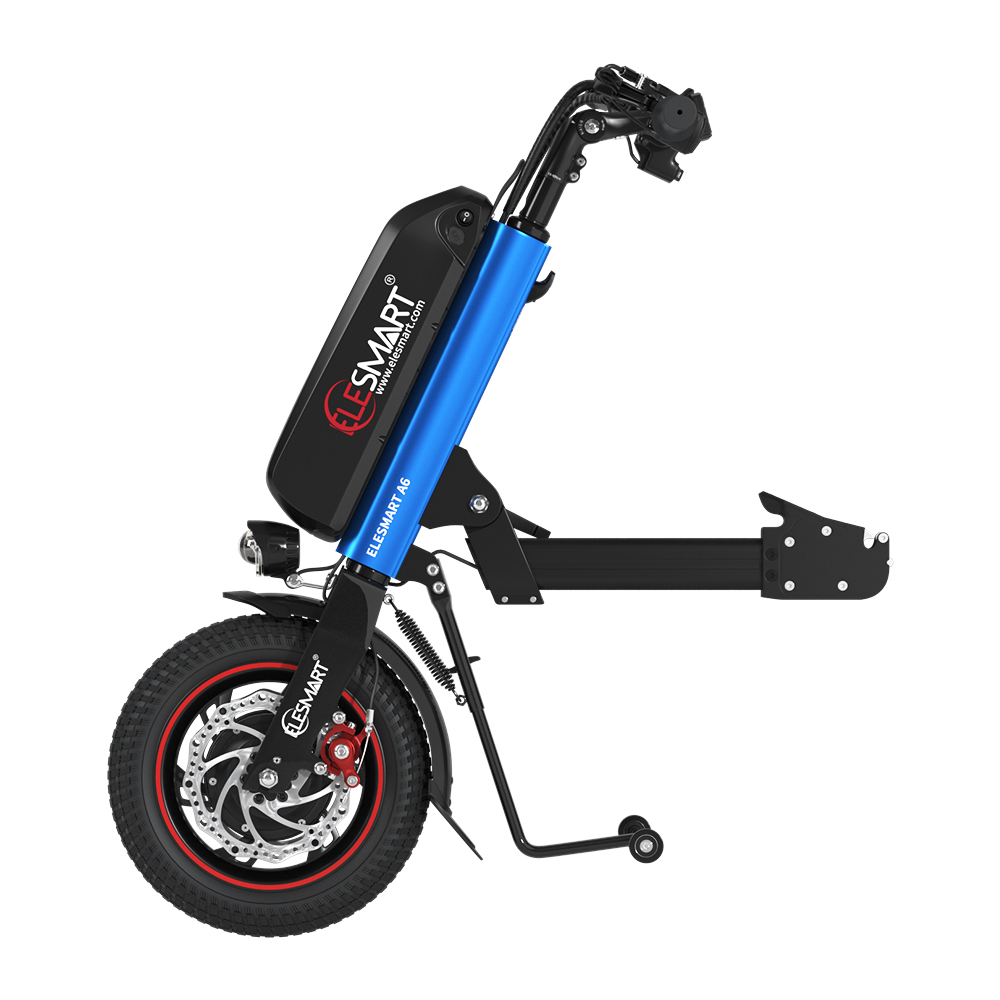

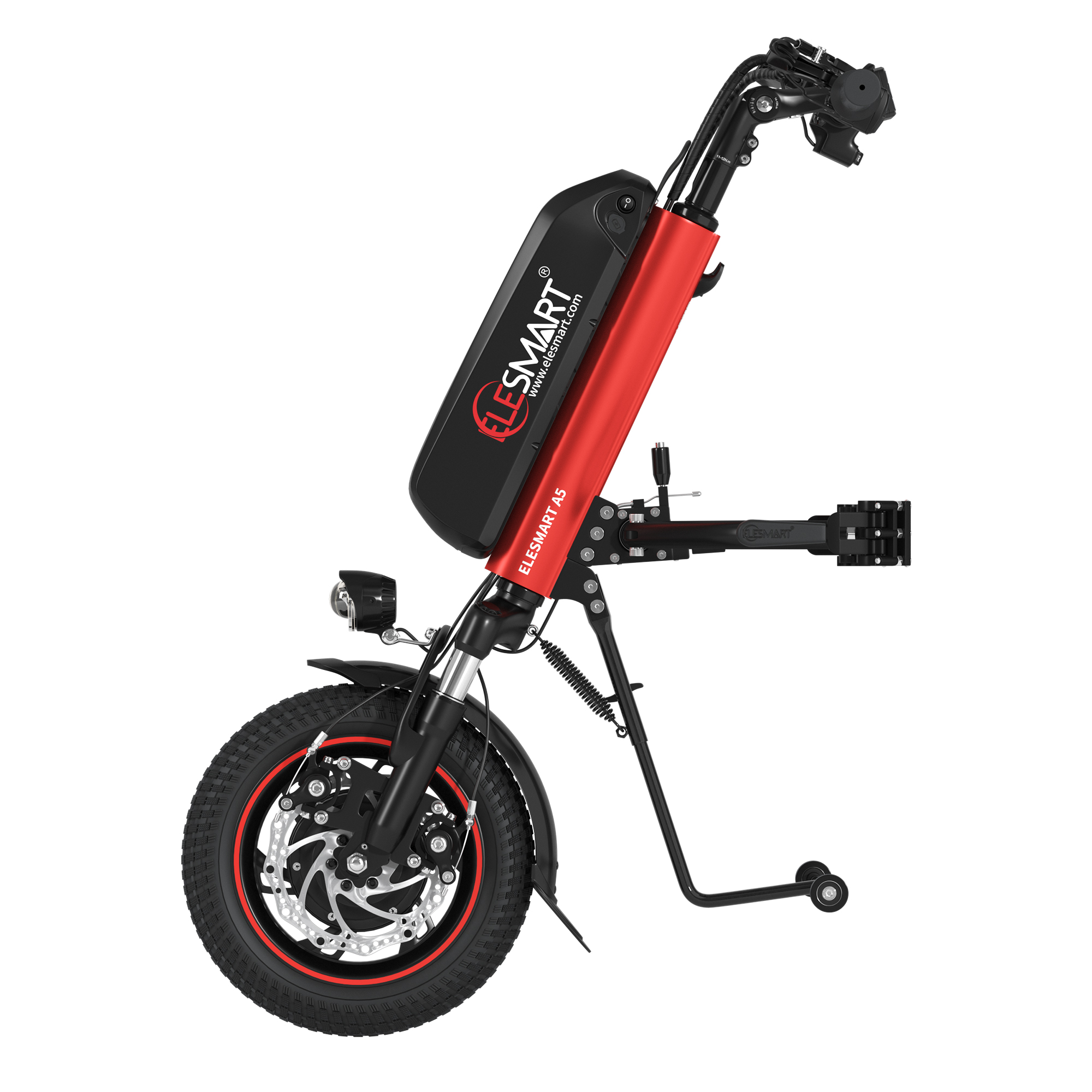

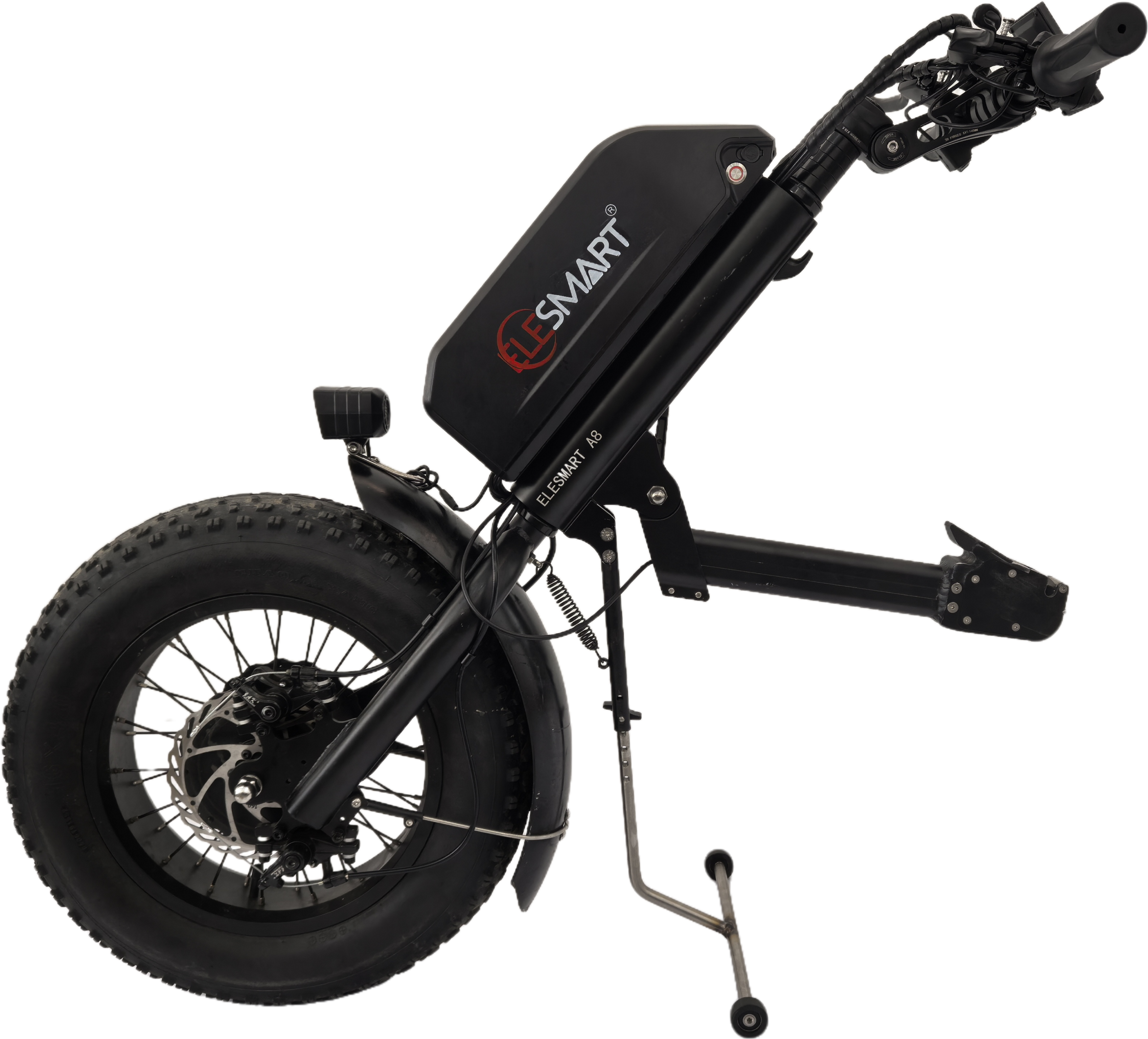

Elesmart wheelchair handcycle 12 inch A3, A5 and A6 (loading weighs 50kg), the maximum speed can reach 25km/h. Model A8 16 inch, the maximum speed can reach 40km/h.
All 3 forward gears, maximum speed of 25KM/H, 1 reverse gear, right-hand control for forward motion.
The main connection methods are side connection and Center connection.
This method is to fix the handcycle on both sides of the manual wheelchair through a clamp. The electric traction device usually has two brackets, which are connected to the two side frames of the wheelchair. Suitable for wheelchairs with round tube diameters of 22-32mm.The advantages of this connection method are:
Easy installation: The side connection device can usually be installed and removed quickly, which is suitable for users who need to remove frequently.
Strong stability: The connection points on both sides ensure the stability of the handcycle and avoid unnecessary shaking.
Applicable scenarios: This connection method is usually suitable for most standard folding wheelchairs and sports wheelchairs, and has strong compatibility.
The center connection is to install the handcycle in the front or rear center of the wheelchair through a bracket or fixing device. This connection method is usually more compact, and the handcycle is concentrated in the center of the wheelchair. Suitable for sports wheelchairs with tube diameters of 30-32mm and foldable wheelchairs 25-32mm.Advantages include:
Increase traction: Because the traction device is concentrated in the center of the wheelchair, it can evenly distribute the traction and provide a smoother driving experience.
Compact appearance: This connection method usually makes the appearance of the wheelchair more simple and compact, easy to carry and store.
Applicable scenarios: Suitable for some wheelchairs with more compact designs, or users who need higher mobility.
When driving a wheelchair handcycle, a series of safety measures must be taken to ensure safe use. These measures involve equipment installation, precautions during operation, maintenance and inspection. The following are some common safety measures:
Ensure a firm connection: Before using the wheelchair handcycle, check whether the connection between the handcycle and the manual wheelchair is firm.
Check the battery power: Make sure the battery is fully charged to avoid insufficient power during use and being unable to continue driving.
Check the tires and drive wheels: Make sure the wheelchair tires are intact and the drive wheels of the traction device are working properly.
Understand the operation interface: Before driving the wheelchair handcycle, make sure you are familiar with the operation of the controller. Understand how to adjust the speed, start and stop the handcycle, adjust the direction and other basic functions.
3. Pay attention to the ground conditions
Choose a suitable road surface: When using the wheelchair handcycle, you should choose a suitable road surface. Try to avoid gravel roads, deep snow or overly rugged terrain.
Wear a standard safety helmet.
Follow the load limit: The wheelchair handcycle usually has a maximum load limit. Overloading may cause equipment failure or safety hazards.
By taking these safety measures, users can effectively reduce risks and ensure safety and stability when using the wheelchair handcycle.
Choosing the right wheelchair head is key to ensuring comfortable, safe and efficient use. When choosing, you need to consider a variety of factors, including wheelchair compatibility, personal needs, etc.
Compatible wheelchair type: Make sure the handcycle is compatible with your manual wheelchair. Different brands and models of handcycles may be suitable for different types of wheelchairs. Common adaptation criteria include the diameter of the wheelchair, the frame type (such as folding, sports or lightweight wheelchairs), and the wheel diameter of the wheelchair.
Connection method: Check whether the connection method of the head is suitable for your wheelchair. Different wheelchair heads may have different methods such as side connection, center connection or quick release connection. Make sure to choose a connection method that is easy to install and remove.
Battery life: Choose the right battery capacity and range according to your usage needs. If you go out frequently and need to move for a long time, it is important to choose a handcycle with a long battery life.
Charging time: Charging time is also important, especially if you need to use the wheelchair handcycle frequently, a fast charging system will be more convenient.
Climbing ability: If you often use your wheelchair on ramps or rugged terrain, it is important to choose a handcycle with strong climbing ability.
Adapt to different road surfaces: Some handcycles are designed for uneven ground and are suitable for special environments such as grass, beaches, snow, etc.
Equipment weight: If you need to remove the wheelchair handcycle frequently, it will be more convenient to choose a lightweight and quick-release handcycle.
Brake system: Make sure the handcycle is equipped with an effective brake system that can stop quickly when needed. Especially on ramps or slopes, a good brake system is essential.
Overload protection: Some high-end electric traction devices are equipped with an overload protection function, which automatically stops or slows down when the handcycle is overloaded to prevent damage or overheating.
Anti-slip design: The wheels and traction device of the head should have anti-slip function to ensure stability when driving on wet, icy, snowy or muddy ground.
If you want to know more about the wheelchair power attachment, please contact us.
Elesmart has a variety of handcycles to choose from, there is always one suitable for you!
