For anyone who relies on a manual wheelchair for daily mobility, the addition of a wheelchair handcycle motor can be a life‑changing upgrade. This motor—typically a brushless hub motor integrated into the front wheel of a detachable handcycle attachment—provides the propulsion that transforms a standard wheelchair into a powerful, electrically assisted tricycle. Without a reliable, high‑performance motor, the handcycle would be just another manual device. In this in‑depth guide, we explore everything you need to know about wheelchair handcycle motors: how they work, what specifications matter most, and why choosing the right motor is the key to unlocking true mobility freedom.

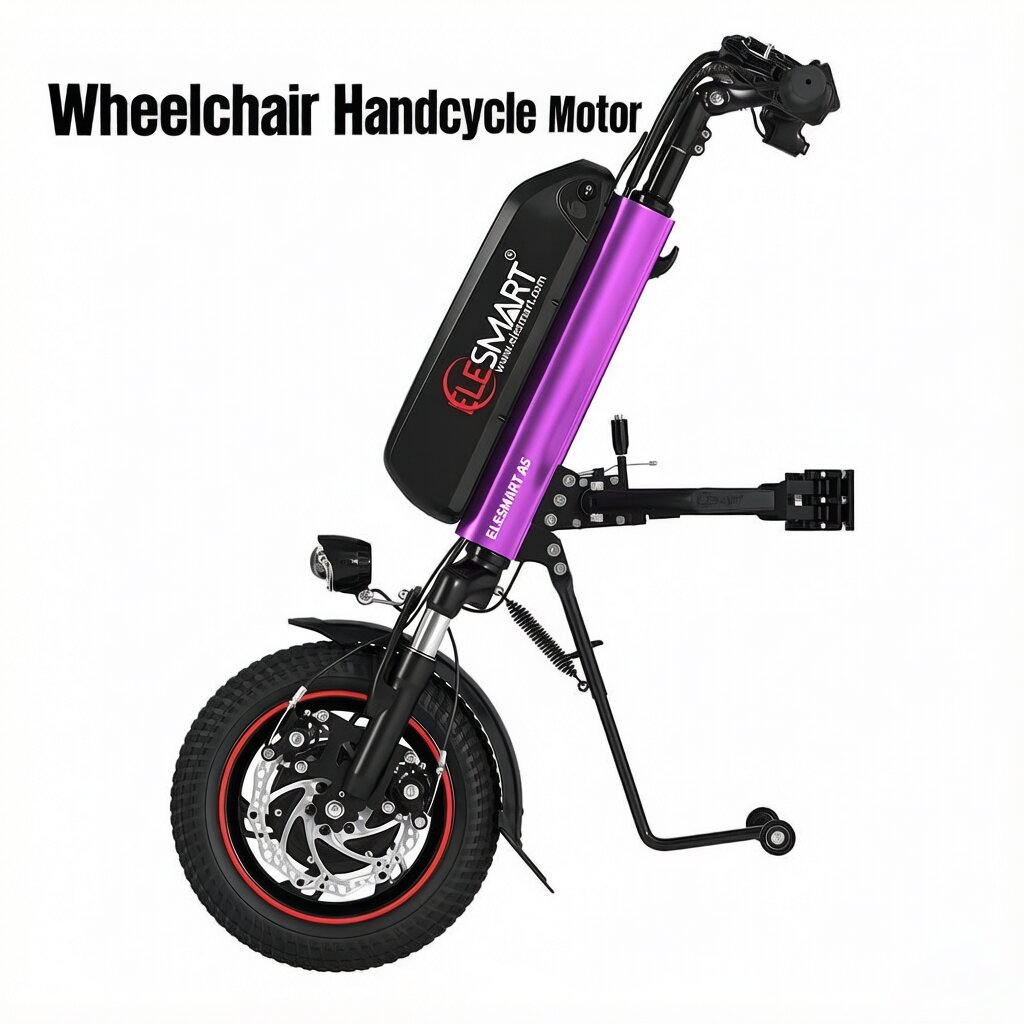

A wheelchair handcycle motor is the electric drive unit mounted inside the front wheel of a handcycle attachment. Unlike conventional bicycle motors that are often located in the hub of the rear wheel or mounted mid‑frame, handcycle motors are almost always hub motors built into the front wheel. This design simplifies the drivetrain, reduces maintenance, and delivers direct, efficient power to the ground.
When the user activates the throttle, the motor spins the front wheel, propelling the entire wheelchair‑handcycle combination forward. The motor is powered by a rechargeable lithium‑ion battery, typically mounted on the handcycle frame, and controlled by an electronic controller that manages speed, torque, and battery efficiency. The motor is the heart of the system—its power, torque, and reliability determine how far and how fast you can go, and how easily you can climb hills or traverse rough terrain.
Many buyers focus on battery range or overall weight, but the motor is the single most important component of any electric handcycle. Here’s why:
Hill‑Climbing Ability. A motor with high torque (measured in Newton‑metres) allows you to ascend steep inclines without slowing to a crawl or overheating. For users who live in hilly areas, a motor with at least 35–45 Nm of torque is essential.
Speed and Efficiency. The motor’s power rating (in watts) directly affects top speed and acceleration. While most regions limit handcycle speeds to 25 km/h for legal reasons, a motor that can comfortably reach that speed without labouring will also be more efficient, extending your battery range.
Durability and Reliability. A quality brushless motor has no brushes to wear out, making it virtually maintenance‑free for years. Poorly built motors can overheat, lose power, or fail prematurely—stranding you far from home.
Smoothness and Noise. A well‑engineered motor delivers smooth, silent power. In contrast, cheap motors may produce vibrations, jerky acceleration, or excessive noise, which detracts from the riding experience.
Regenerative Braking. Some advanced motors support regenerative braking, which recovers energy when you slow down and feeds it back into the battery, slightly extending your range.
There are two main types of electric motors used in wheelchair handcycle attachments:
Brushless DC Hub Motors (BLDC). These are the most common and preferred type. They are highly efficient, quiet, and require minimal maintenance. The motor is housed inside the front wheel hub, eliminating the need for chains or belts. Most reputable handcycle brands, including ELESMART, use BLDC hub motors because they offer excellent torque‑to‑weight ratios and long service life.
Brushed Motors. Older or cheaper models may use brushed motors, which are simpler and less expensive but suffer from brush wear, lower efficiency, and more noise. They are increasingly rare in modern electric handcycles and are not recommended for serious users.
When choosing a wheelchair handcycle motor—or a complete handcycle system—pay close attention to these technical parameters:
Motor Power (Watts). Typical handcycle motors range from 250W to 500W. Higher wattage means more acceleration and better hill‑climbing, but it also consumes battery faster. For most users, a 500W motor strikes the best balance between performance and range. Some high‑performance models offer 750W or more, but these may be subject to legal restrictions in certain regions.
Torque (Nm). Torque is the rotational force that gets you moving and powers you up hills. A motor with 40–45 Nm of torque can handle slopes of 8 to 10 degrees with ease. If you live in a flat area, lower torque may suffice, but for versatile use, higher torque is always beneficial.
Nominal Voltage. Most handcycle motors operate on 36V or 48V systems. Higher voltage systems generally deliver more power and efficiency, but they also require compatible batteries and controllers.
Efficiency Rating. A motor’s efficiency determines how much of the battery’s energy is converted into useful motion. Premium BLDC motors achieve efficiencies of 80–90%, meaning less heat waste and more kilometres per charge.
IP Rating (Ingress Protection). Since handcycles are used outdoors in all weather, look for a motor with at least IP54 rating—protected against dust and splashing water. Higher ratings (like IP65) offer even better weather resistance.
Weight. The motor adds to the total weight of the handcycle attachment. A lighter motor makes the device easier to transport and manoeuvre, but it should not compromise power. Quality motors weigh around 3–5 kg, which is reasonable given their performance.
The motor does not operate in isolation. It is part of a coordinated system:
Battery supplies DC power (e.g., 36V or 48V) to the controller.
Controller regulates the flow of current to the motor based on throttle input and riding mode. It also protects the motor from overcurrent, overheating, and short circuits.
Throttle (twist‑grip or finger lever) sends signals to the controller to increase or decrease speed.
Display shows real‑time data such as speed, battery level, and power consumption.
A high‑quality controller ensures that the motor delivers power smoothly and efficiently, extending both motor and battery life. Some advanced systems also include pedal‑assist sensors (though less common in handcycles) and cruise control functions.
While brushless motors are generally reliable, they can encounter problems if not properly maintained or if they are of substandard quality. Common issues include:
Overheating – caused by prolonged high‑power operation, especially on steep hills. Choose a motor with adequate cooling fins or thermal protection.
Loss of power – may result from a faulty controller, loose connections, or a dying battery. Regular inspection of wiring and connectors can prevent this.
Noisy operation – often a sign of bearing wear or magnet damage. Using a motor from a reputable brand reduces this risk.
Water damage – if the motor is not sufficiently sealed. Always check the IP rating and avoid submerging the handcycle in deep water.
To illustrate the difference, consider two handcycle users: One purchases a cheap, no‑name handcycle with a 250W brushed motor and low torque. On flat ground, it moves along, but on a 5‑degree incline, it slows to a crawl and the motor overheats after ten minutes. The other user invests in a premium 500W BLDC motor with 45 Nm torque. That rider climbs the same hill effortlessly, maintains speed, and arrives with plenty of battery remaining. Over time, the premium motor also proves more durable, requiring no repairs for years.
This performance gap is why discerning users prioritise motor quality over price. It is not just about speed—it is about reliability, confidence, and the freedom to go wherever you choose without fear of being stranded.
The assistive technology industry continues to innovate, and handcycle motors are no exception. Emerging trends include:
Sensorless vector control – for even smoother torque delivery and improved efficiency.
Integrated motor controllers – reducing weight and complexity by combining controller and motor in one unit.
AI‑assisted power management – systems that learn your riding habits and adjust power output automatically to optimise range.
Wireless firmware updates – allowing manufacturers to improve motor performance over time without physical service.
Lighter materials – such as magnesium alloy housings, reducing motor weight without sacrificing strength.
These advancements promise to make electric handcycles even more capable, user‑friendly, and accessible in the coming years.
Keeping your motor in top condition is straightforward:
Keep it clean – wipe away dirt and moisture after each ride, especially around the axle and connectors.
Check connections – ensure battery and motor cables are secure and free of corrosion.
Avoid overloading – do not exceed the recommended weight capacity, as this strains the motor.
Store properly – keep the handcycle in a dry, temperature‑controlled environment when not in use.
Follow charging guidelines – use the provided charger and avoid deep discharging the battery, which can stress the motor controller.
A wheelchair handcycle is only as good as its motor. The motor determines your top speed, your ability to climb hills, your riding range, and your overall enjoyment. By choosing a handcycle with a powerful, efficient, and durable brushless hub motor—ideally rated at 500W with high torque—you ensure that your mobility device will serve you faithfully for years. Whether you are commuting, exploring nature, or simply running errands, the right motor transforms a manual wheelchair into a true vehicle of independence.
