For manual wheelchair users, the desire for greater mobility, longer distances, and less physical strain is universal. Yet purchasing a completely new electric wheelchair is often expensive, heavy, and impractical for those who value the lightweight portability of their manual chair. This is where a handbike motor kit offers the perfect solution—a modular, attachable electric drive system that transforms your existing manual wheelchair into a powerful, motorized vehicle without replacing your trusted chair.

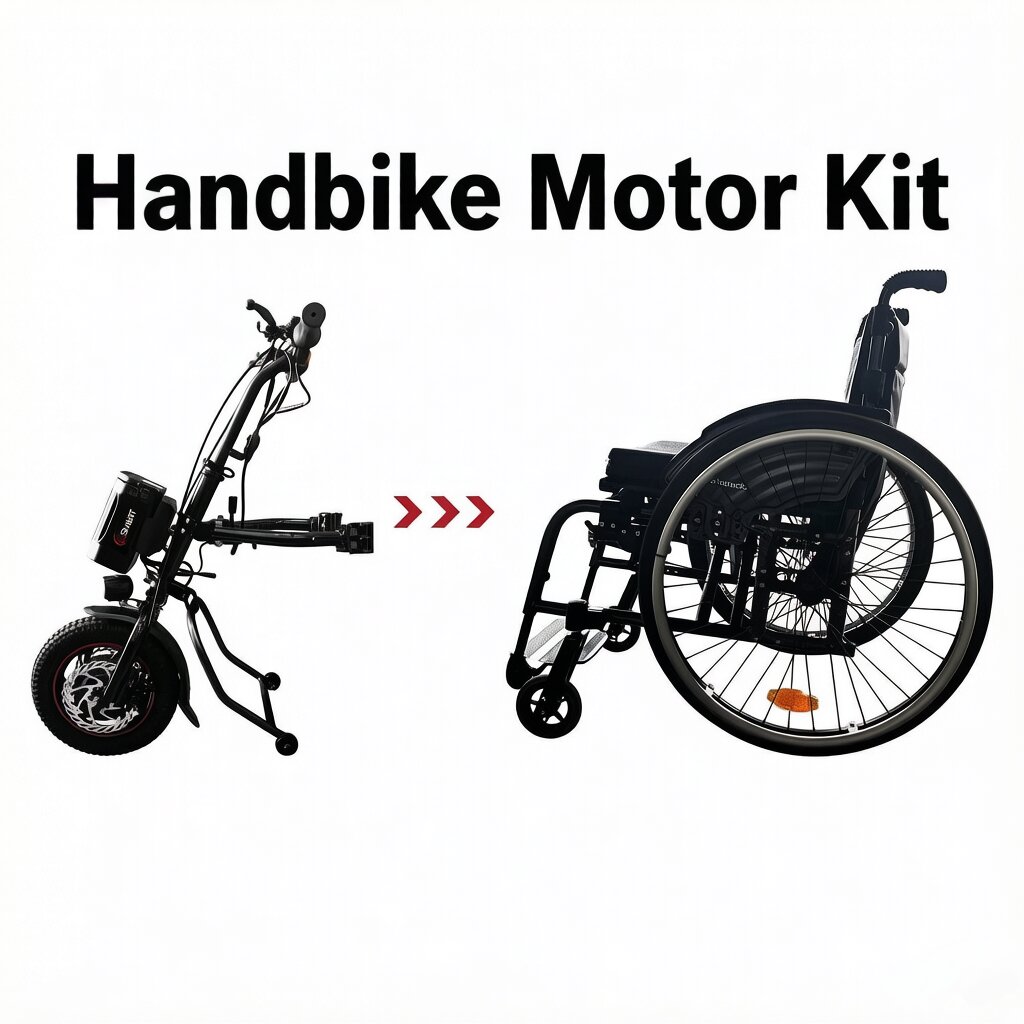

A handbike motor kit—also referred to as a power handcycle kit, electric handcycle conversion kit, or wheelchair power attachment—is a comprehensive set of components designed to be mounted onto the front of a standard manual wheelchair. The kit typically includes an electric motor, a rechargeable battery, a controller, handlebars with throttle and brake controls, and all necessary mounting brackets and hardware. Once installed, the kit lifts the front casters off the ground, converting your four-wheel manual chair into a stable three-wheel electric handbike.
Unlike factory-built electric wheelchairs, a handbike motor kit is a retrofitting solution. It allows you to keep your custom-fitted, lightweight manual wheelchair while adding electric power when you need it. The entire system is detachable, meaning you can remove it in seconds for transport, storage, or when you prefer to self-propel manually.
Many manual wheelchair users have invested significant time and money in selecting a chair that fits their body, lifestyle, and preferences. A handbike motor kit lets you keep that investment intact. You don't have to compromise on the lightweight frame, foldable design, or custom seating of your current chair—simply add the motor kit when you need powered assistance.
Manual wheelchair propulsion is known to cause repetitive strain injuries to shoulders, wrists, and elbows over time. Studies have repeatedly demonstrated that handcycle propulsion is far more efficient and generates significantly lower joint forces compared to pushrim propulsion. By using a handbike motor kit, you can significantly reduce the physical effort required for longer trips, hills, and rough terrain, thereby protecting your upper extremities from overuse injuries.
With a quality handbike motor kit, you can cover distances that would be impossible or exhausting with manual propulsion alone. Modern lithium-ion batteries provide ranges between 30 to 100 kilometers (20 to 62 miles) on a single charge, depending on the terrain, rider weight, and assist level. This opens up opportunities for commuting, long outdoor excursions, and running errands without worrying about running out of energy.
Steep slopes, gravel paths, grass, and even light snow are no match for a powerful handbike motor kit. High-torque motors—some delivering up to 85Nm—allow users to climb inclines of 8 to 12 degrees effortlessly. This transforms previously inaccessible areas into part of your daily environment, significantly boosting your independence and quality of life.
Most handbike motor kits are designed for tool-free installation. With 99% of components pre-assembled, you can mount the kit onto your wheelchair within minutes using quick-release clamps that fit standard tubing sizes (typically 22–32mm in diameter). When not needed, you can detach the entire unit and store it in your car trunk, closet, or even carry it as luggage, as many kits weigh only 15–18 kg (33–40 lbs).
Purchasing a high-quality electric wheelchair can cost thousands of dollars. A handbike motor kit provides similar powered mobility benefits at a fraction of the cost, making it an accessible upgrade for many users. Moreover, because you retain your manual chair, you don't need to maintain two separate wheelchairs.
A standard handbike motor kit consists of several key components:
Electric Motor – Usually a brushless DC hub motor or geared motor mounted on the front wheel. Geared motors offer better torque for climbing, while gearless motors are quieter and require less maintenance.
Battery Pack – Lithium-ion or lithium-iron-phosphate batteries with capacities ranging from 10Ah to 20Ah. Many kits feature removable batteries for convenient charging.
Controller and Display – An intelligent controller manages power delivery. A handlebar-mounted display (often color TFT) shows speed, battery level, distance, and assist mode. Some models include cruise control and reverse function.
Throttle and Brake Levers – Allows intuitive speed control and reliable stopping. Disc brakes are common for superior stopping power.
Mounting Brackets – Clamps and adapters designed to fit your wheelchair's front frame. Side-mount or center-mount options are available.
Handlebar Assembly – Ergonomically designed handlebars with grips, throttle, and controls.
Charger – A smart charger for the battery.
There are two main categories based on the motor placement:
Front-Wheel Drive Kits – The motor is integrated into the front wheel, which is attached to the wheelchair via a mounting system. This is the most common type, offering good traction and simplicity.
Frame-Mounted Kits – The motor is mounted onto the wheelchair frame, driving a separate wheel via a belt or chain. These are less common but may offer specific advantages in certain configurations.
Additionally, kits can be classified by mounting method:
Side-Mount Kits – Attach to both sides of the wheelchair frame using clamps. Suitable for most folding and rigid wheelchairs with round tubing 22–32mm.
Center-Mount Kits – Use a central bracket that connects to the front caster stem or footrest area. These are more compact and often easier to attach/detach.
ELESMART, a recognized brand in the mobility equipment industry with over a decade of manufacturing expertise, offers a comprehensive range of handbike motor kits tailored to different user needs and budgets. All ELESMART kits are compatible with most manual wheelchairs (folding or rigid) with tube diameters between 22mm and 32mm. They are ISO 13485 and CE certified, ensuring quality and safety.
The A3 is a compact, lightweight handbike motor kit designed for daily urban use. With a 36V 350W geared motor producing 40Nm of torque, it delivers smooth assistance on flat roads and moderate slopes. The 12-inch front wheel offers good maneuverability. The kit weighs only 15 kg (33 lbs), and its 10.4Ah lithium battery provides a range of up to 35 km (22 miles). It's an excellent choice for users who need occasional power assist for shopping, commuting, or leisure rides.
The A5 upgrades to a 36V 500W motor with 45Nm of torque, offering more power for steeper inclines (up to 10 degrees). Its 12.8Ah battery extends the range to approximately 60 km (37 miles). The A5 features a disc brake system for confident stopping, shock absorption for ride comfort, and an LED headlight for visibility. With 99% of parts pre-assembled, installation is quick. It includes a color TFT display and cruise control function, making long-distance travel effortless and enjoyable.
The A6 is engineered for users who want a premium experience without sacrificing portability. Its geared motor is 20% more energy-efficient than gearless types, which translates to longer range and better climbing ability. The kit reaches speeds up to 40 km/h (25 mph) and offers three forward gears to adapt to different terrains. The battery is highly efficient, providing a reliable range for extended outings. The A6 also includes a horn, reverse gear, and a full-color display for comprehensive ride data.
For the adventurous user who demands maximum performance, the A8 is the ultimate handbike motor kit. It comes with a 48V 1000W motor generating a staggering 85Nm of torque—enough to conquer steep hills, loose gravel, sand, and even light snow. The 16-inch fat tire (4 inches wide) provides exceptional traction and stability on uneven terrain. With a top speed of 40 km/h and a range of 80–100 km (50–62 miles), the A8 turns any manual wheelchair into an all-terrain electric vehicle. It includes three gears, cruise control, a TFT touch display, and robust disc brakes. This kit is ideal for outdoor enthusiasts who refuse to let terrain limit their freedom.
When selecting a handbike motor kit, consider the following factors:
Terrain – Do you mostly navigate city pavements, or do you need off-road capability? Flat urban environments may only require a 350W motor, while hilly or rough terrain demands 500W to 1000W with higher torque.
Range – Estimate your typical daily travel distance. For short trips, a 10Ah battery may suffice; for longer commutes or all-day outings, opt for 12.8Ah or more.
Weight – Kits range from 15kg to 20kg. If you need to frequently lift the kit into a vehicle, lighter models are preferable.
Installation – Check compatibility with your wheelchair's frame tubing diameter and mounting style (side or center). Most ELESMART kits fit 22–32mm tubes.
Additional Features – Consider whether you need cruise control, a display, lights, horn, reverse speed, or shock absorption for added comfort.
A handbike motor kit is an excellent choice for:
Manual wheelchair users who want to reduce shoulder fatigue on long trips
Commuters who travel several miles daily to work or school
Outdoor enthusiasts who enjoy exploring parks, trails, and natural areas
Seniors or individuals with limited upper body strength
Anyone seeking a cost-effective, flexible alternative to a full electric wheelchair
Travelers who need a portable, detachable power solution
Installing your handbike motor kit is straightforward. Most kits come with detailed instructions and all necessary tools. General steps include:
Attach the mounting brackets to your wheelchair frame.
Slide the motor unit into the brackets and secure.
Connect the battery, controller, and handlebar assembly.
Adjust the handlebar height and angle for comfort.
Charge the battery fully before first use.
Regular maintenance involves keeping the motor and connectors clean, checking tire pressure, periodically tightening bolts, and storing the battery in a cool, dry place when not in use. Most components are low-maintenance and built for durability.
A handbike motor kit is one of the most versatile and cost-effective upgrades available for manual wheelchair users today. It preserves your existing chair's lightweight and custom fit while adding the power and range needed to live a more active, independent life. Whether you choose the entry-level A3, the versatile A5, the premium A6, or the all-terrain A8, ELESMART offers a solution tailored to your unique needs.
Take control of your mobility and explore a world without limits. For more information about ELESMART handbike motor kits, including compatibility questions and ordering details, reach out to our team.
